5 Inch Rain Gutters Rolling Forming Machine
5 Inch rain gutters rolling forming machine is designed to make rain gutters in batch fully automatically. Gutters are used for protecting the house from rain and snow and then put the water to the right place. Here we will share one type 5 Inch rain gutters rolling forming machine. Here is the drawing profile from clients for your reference:
About the installation of this type rain gutter:
5 Inch rain gutters rolling forming machine Design:
| Base Frame Structure | 350 H-beam welded |
| Sidewall thickness | 16mm A3 Carbon Steel seamless welded with base frame |
| Roller Stations | 18 forming units |
| Connect Bar | Diameter 25mm galvanized steel rod |
| Roller Shaft(Solid) | 70mm-0.01~-0.03 with Key-way |
| Shaft Material(Hard) | High grade 45# steel，lathe then polishing smoothly |
| Roller Material(Hard) | High grade 45# steel，CNC lathe then chromed plated 0.05mm |
| Bearing type | standard 6210(Wanxiang,Wuxi), single units inside wall box |
| Screw and bolts | Common 8.8 standard |
| Transmission method | 0.6 inch (Jindun,Hangzhou) |
| Driving motor | 4.0KW(Lichao,Shanghai) |
| Motor reducer | 4.0KW (Wujin,Changzhou) |
| Forming speed | 10-12m/min |
More details of the gutter rolling forming machine for your reference:
- For all the leveling roller we choose the stainless material with gear inside to make sure the coil could be sent to machine easily without scratching the surface of the coil.
- For the first three roller station we put the gear outside. It is good when feeding the coil more powerful.
- The machine frame we use the thick steel and slop to make the sure the machine strong enough to use for a long time.
- We choose the portable PLC for easy installation and easy to operate like the smart cellphone.
- We have the seriously quality control system.

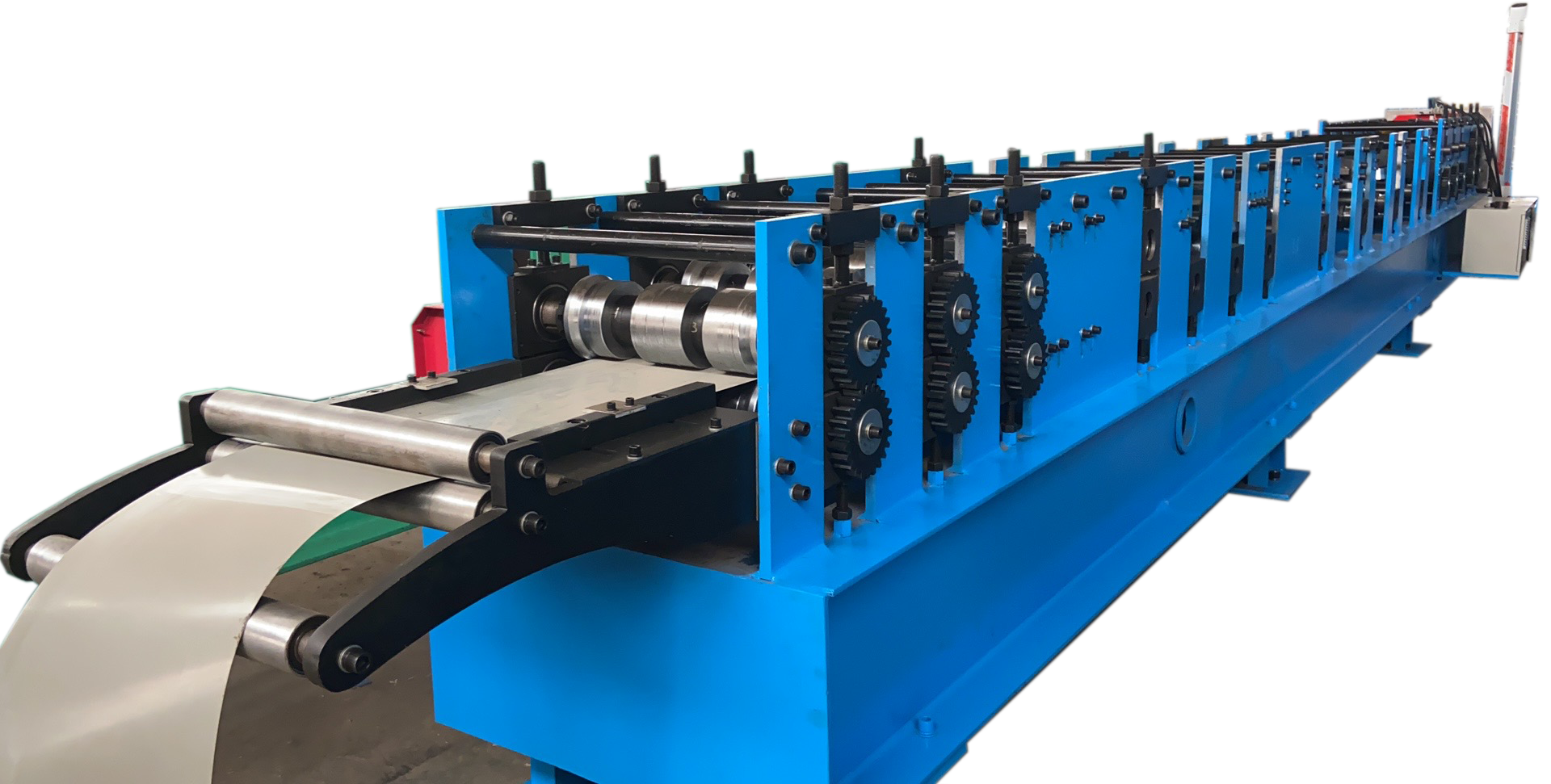

leveling part of gutter making machine
