Adjustable width linear shelf panel machine is designed to make shelf panels in batch automatically. This machine rollers can be adjusted to your drawing profile width and length. helf panel roll forming machine can be customized to your specification ideal for making different styles such as adjustable size, punching holes, embossing logo, making light or heavy duty panels and more…

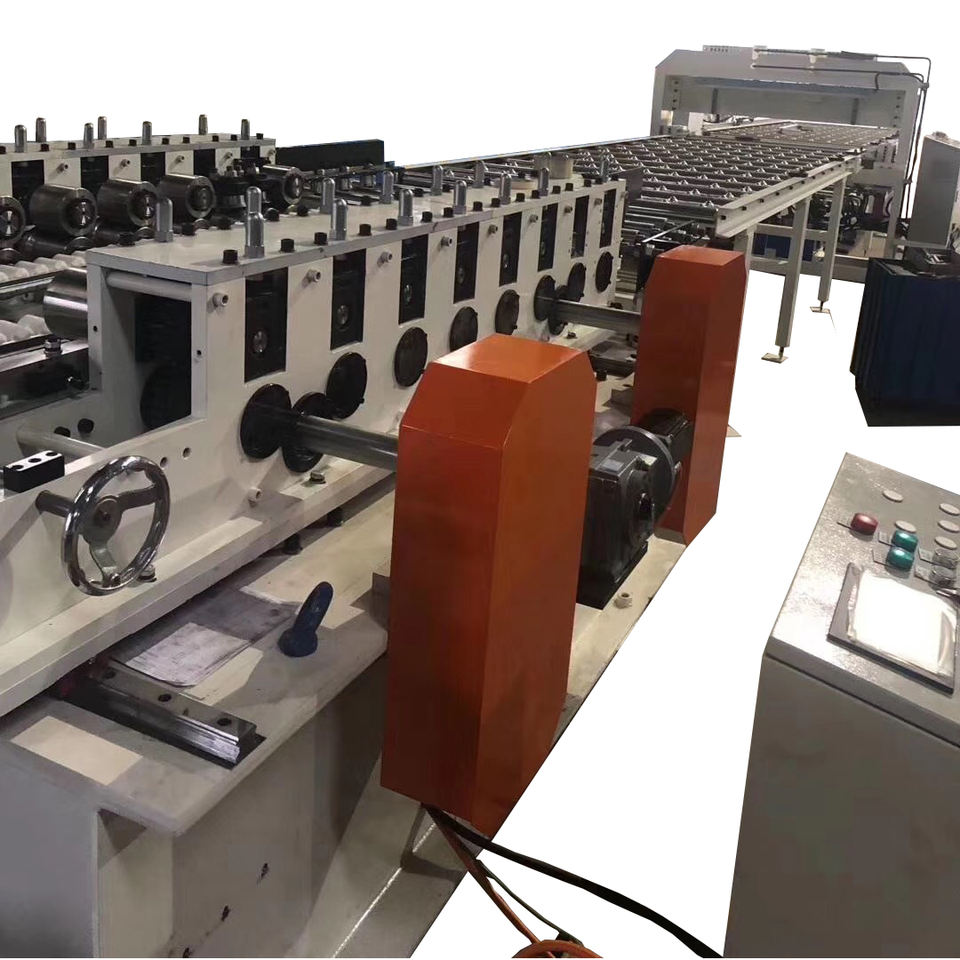

Adjustable Width Linear Shelf Panel Roll Forming Machine

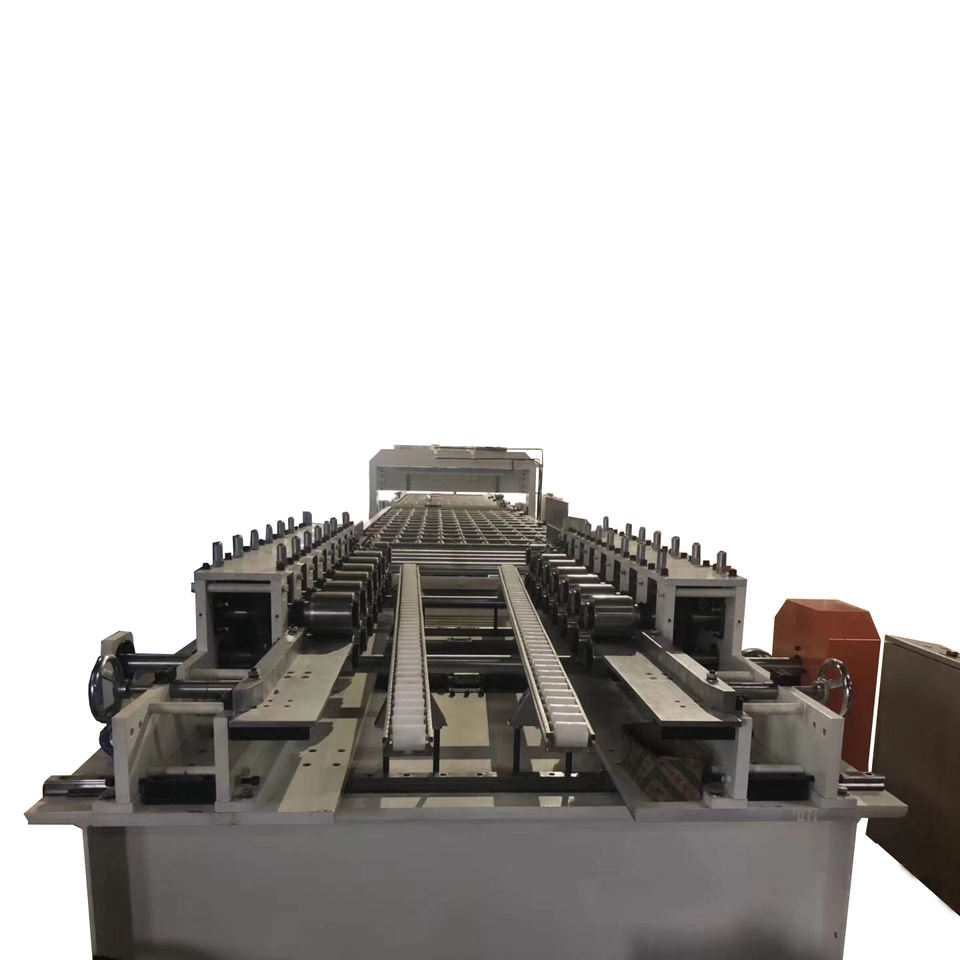

Adjustable Width Linear Shelf Panel Roll Forming Machine

1. The machine Is composed by the following elements:

2. 5 Ton passive decoiler or hydraulic decoiler

3. Leveling machine

4. Servo coil feeder

5. Fully automatic punching machines with the servo coil feeder another one.

6. Main rolling forming machine with cutting edge, bending

7. Hydraulic station

8. PLC control system

9. Receiving table

Sample picture for reinforcing shelf panel for heavy duty use

Adjustable Width Linear Shelf Panel Roll Forming Machine

The below profile drawing sample picture shows  there are 5 different sizes in width for the finish product:

Adjustable Width Linear Shelf Panel Roll Forming Machine

Embossing Sample Picture:

Adjustable Width Linear Shelf Panel Roll Forming Machine



Adjustable Width Linear Shelf Panel Roll Forming Machine

Decoiler -> Leveling -> Servo Coil Feeder -> Hydraulic Punching -> Leveling -> Rollers – > Cutting + Bending -> Collecting Table



Item Specification
Main Forming Power 380V/50HZ – 3 Phase
Working Speed 6-8m/min
Feeding Thickness 0.5mm – 1.0mm
Drive Type Chain drive
Machine Architecture Middle plate construction; 20mm thick
Roller Station 35 (depending on drawing profile)
Roller Shaft φ50mm Solid Shafts, 45# Steel
Roller Gr15 quenching HRC58-62 C
Chrome plated surface
Bearing China Harbin famous brand
Main Frame 400# H-beam Steel Welded
Color

Customizable





Usage: It is used to support the steel coil and uncoil the material in a turnable way.

Adjustable Width Linear Shelf Panel Roll Forming Machine

12t hydraulic decoiler specification:

Item Specification
Decoiling Type Actively Uncoiling Type
Loading Capacity 12 Tons
Loading Width Max. 1250mm
Coil Inner Diameter 450-550mm
Coil Outer Diameter Max. 1500mm
Motor 7.5kW+3kW



Manual Decoiler Sample Pictures

Adjustable Width Linear Shelf Panel Roll Forming Machine



Q: Can you customize the machine to your company’s specification?

A: Yes, we can manufacture the machine according to your specification.

Q: How is the quality?

A: All raw materials are quality controlled. Staffs take care of every detial when handling production and packaging. Our quality control department is responsible for the quality of each process.

Q: Do we have after sales service?

A: Yes, we have after sale service via email, whatsapp, wechat, skype and other communication method.

Q: Does our machine comes with warrenty?

A: Yes, it comes with 2 years warranty.
