STUD TRACK ROLL FORMING

One machine can produce different sizes by automatic changing size type,high efficiency.We also can produce other type of cable tray profiles according to customer’s request.

Cable tray system is used to support insulated electrical cables used for power distribution, control, and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction.

We ZTRFM Cangzhou Zhongtuo are the professional manuafacturer of this kind of machines,and we have exported this production line to Algeria,Hungary and so on.

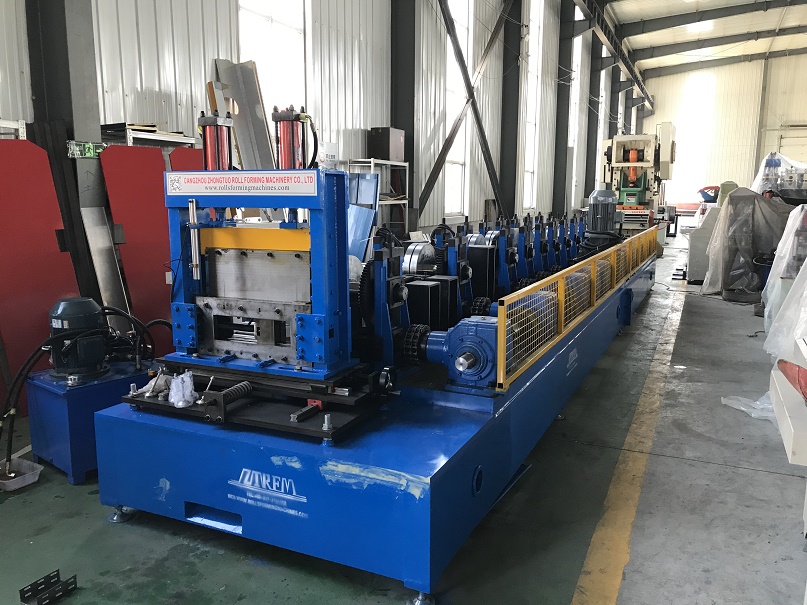

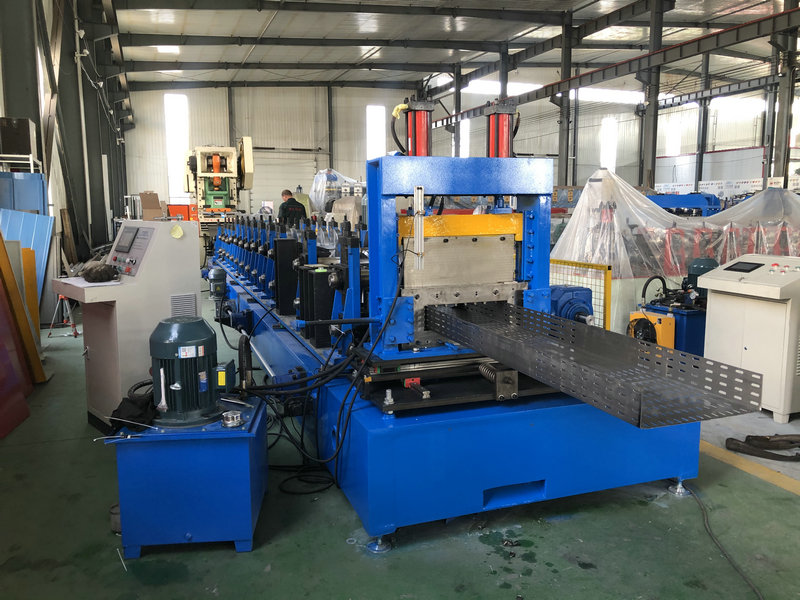

The pictures of the whole production line:





























The profile drawing and finished product picture:





























The installation of the cable tray:































The composition of the whole production line:

No. Name Quantity
1 Manual/hydraulic Decoiler 1 set

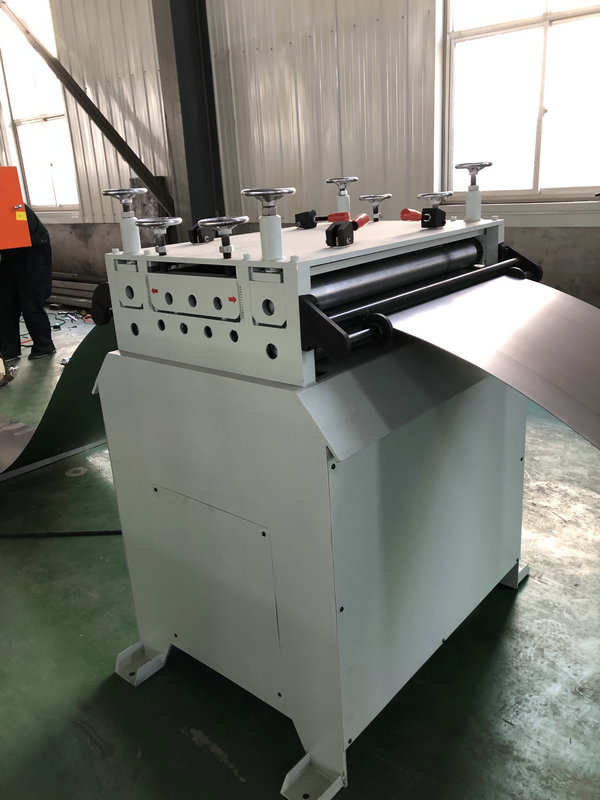

2 Leveler 1 set

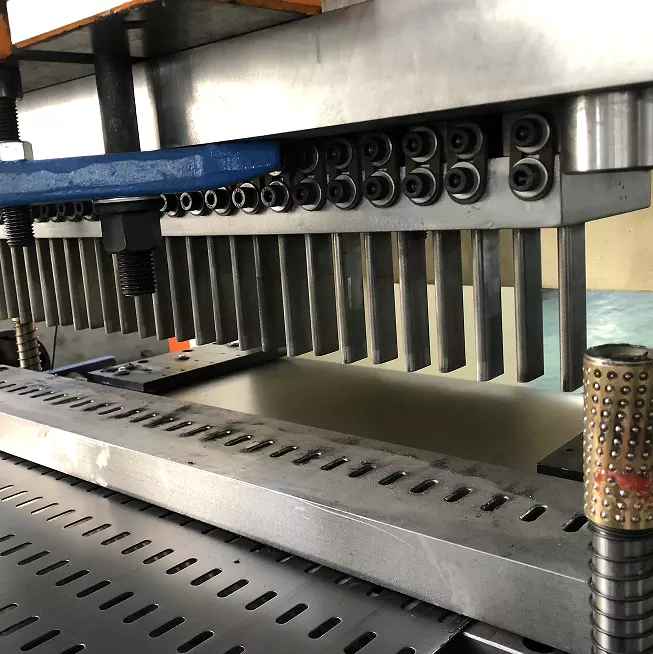

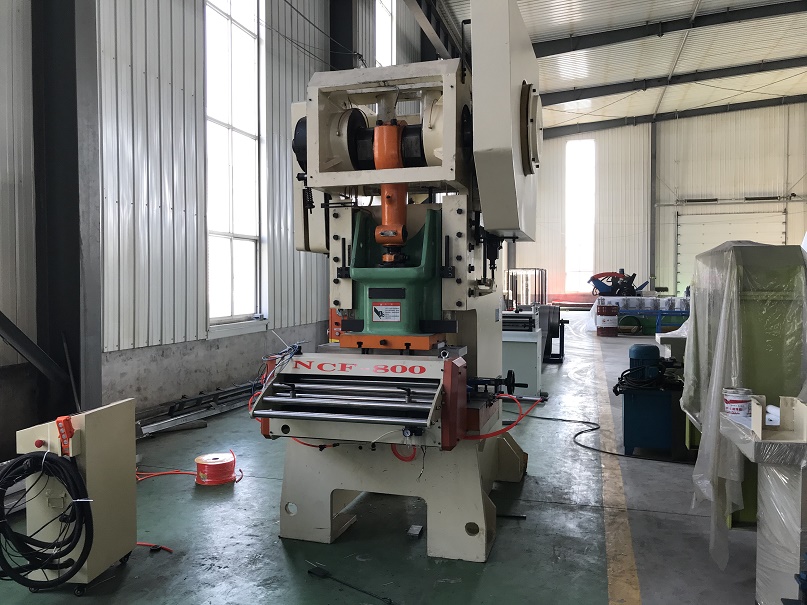

3 Punching machine with servo feeder 1 set

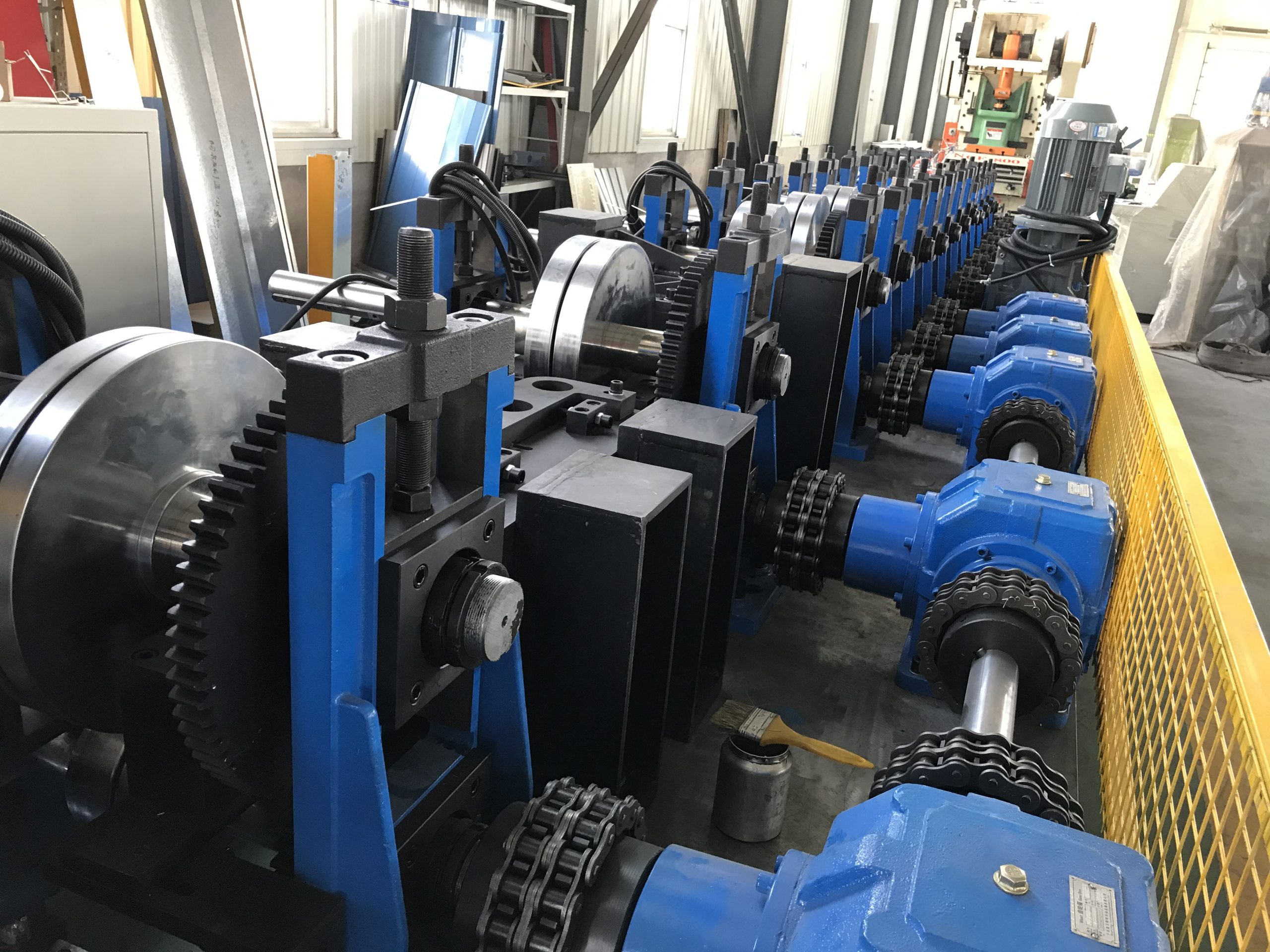

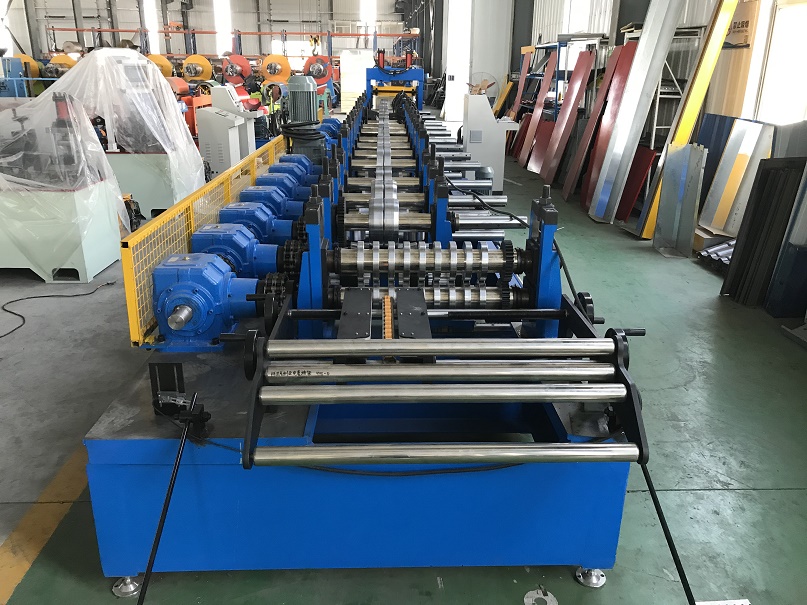

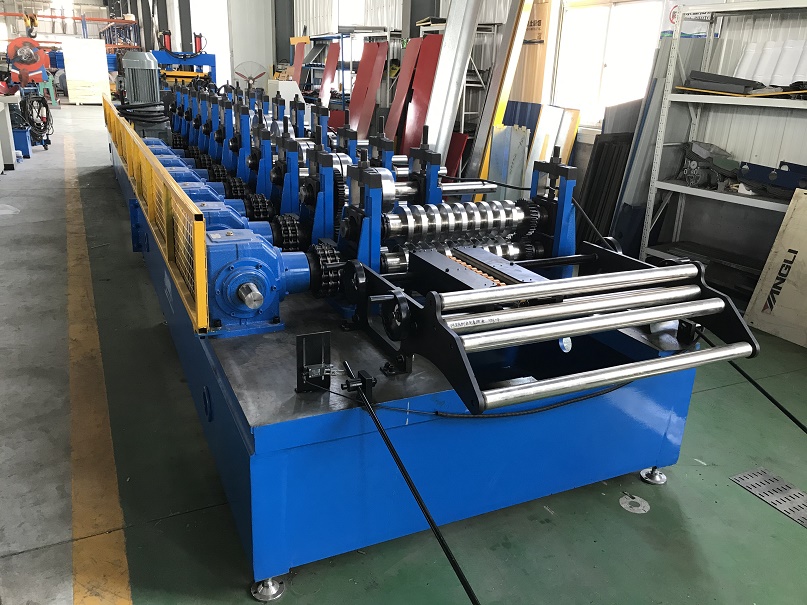

4 Main roll former 1 set
5 Control system 1 set
6 Hydraulic system 1 set
7 Product Run-out table 1 set



The technical specifications of the whole production line:

Item Name Specifications
1 Raw material Galvanized steel,carbon steel
2 Raw material thickness 0.7-2mm
3 Decoiler Manual/Hydraulic decoiler
4 Roller station 12 station(according to profile drawing)
5 Roller material Cr12 steel with quenched treatment
6 Shaft diameter 80mm
7 Shaft material 45# steel with tempered
8 Transmission by gearbox
9 Motor power 11kw
10 Machine frame 350H steel welded
11 Cutting type Electric motor cutting
12 Hydraulic power 7.5kw
13 Cutting blade material Cr12 with quenched treatment
14 Cutting tolerance +/-1mm
15 Control system PLC
16 Brand PLC:Delta/Siemens/Mitsubishi

Touch screen:Delta/Siemens/Mitsubishi

Encoder:Omron
