STUD TRACK ROLL FORMING

High speed full automatic furring channel roll forming machine,different speed for option.

The Furring ceiling system is a suspended steel framing system, clad with gypsum boards. Its grids are concealed behind the ceiling board. The finishing surface would be smooth and may receive direct decoration such as painting and pasing wall paper. It is mostly used in where plain ceiling is required.

The profile drawing of furring channel:











The application of the furring channel:

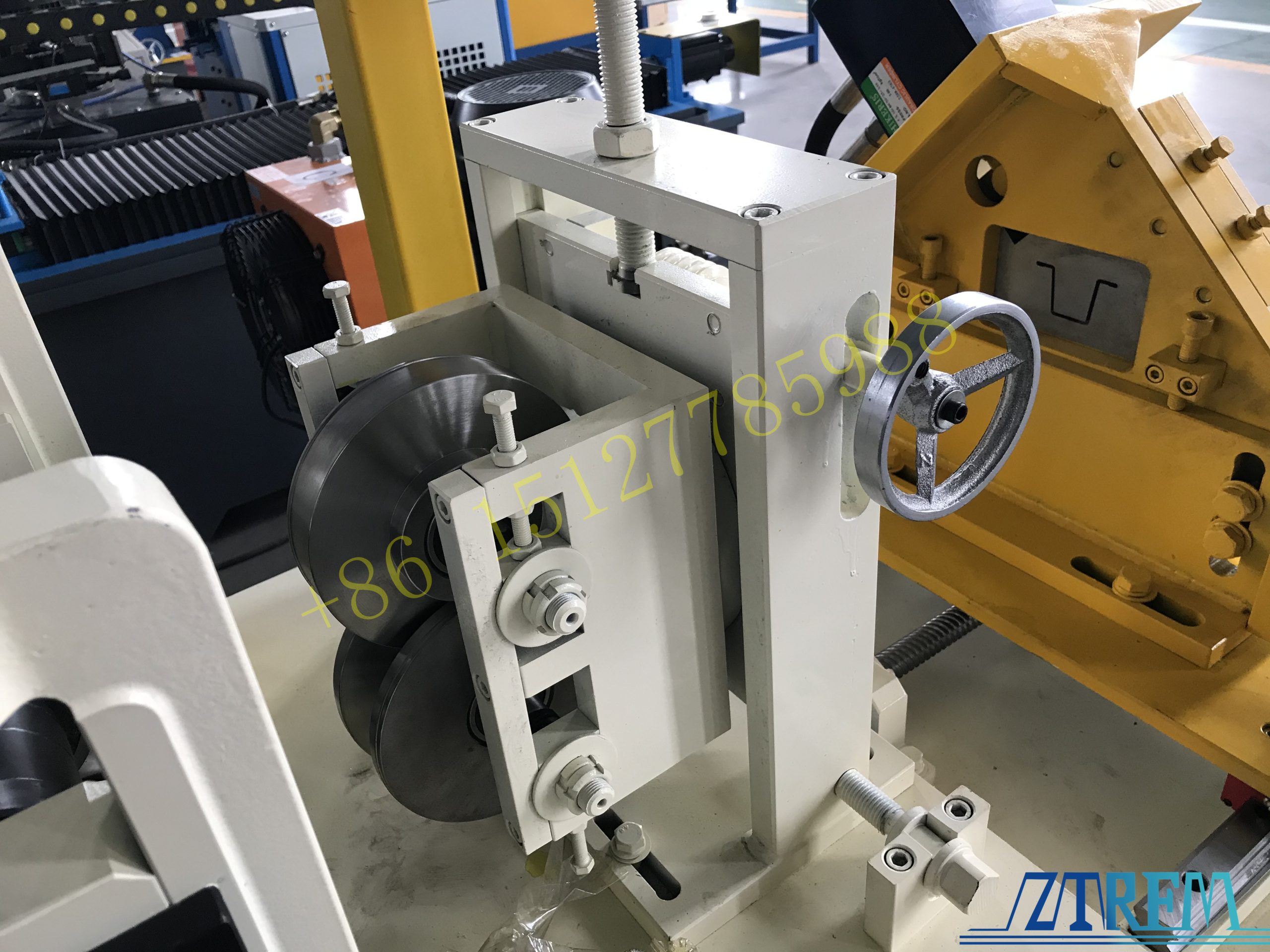

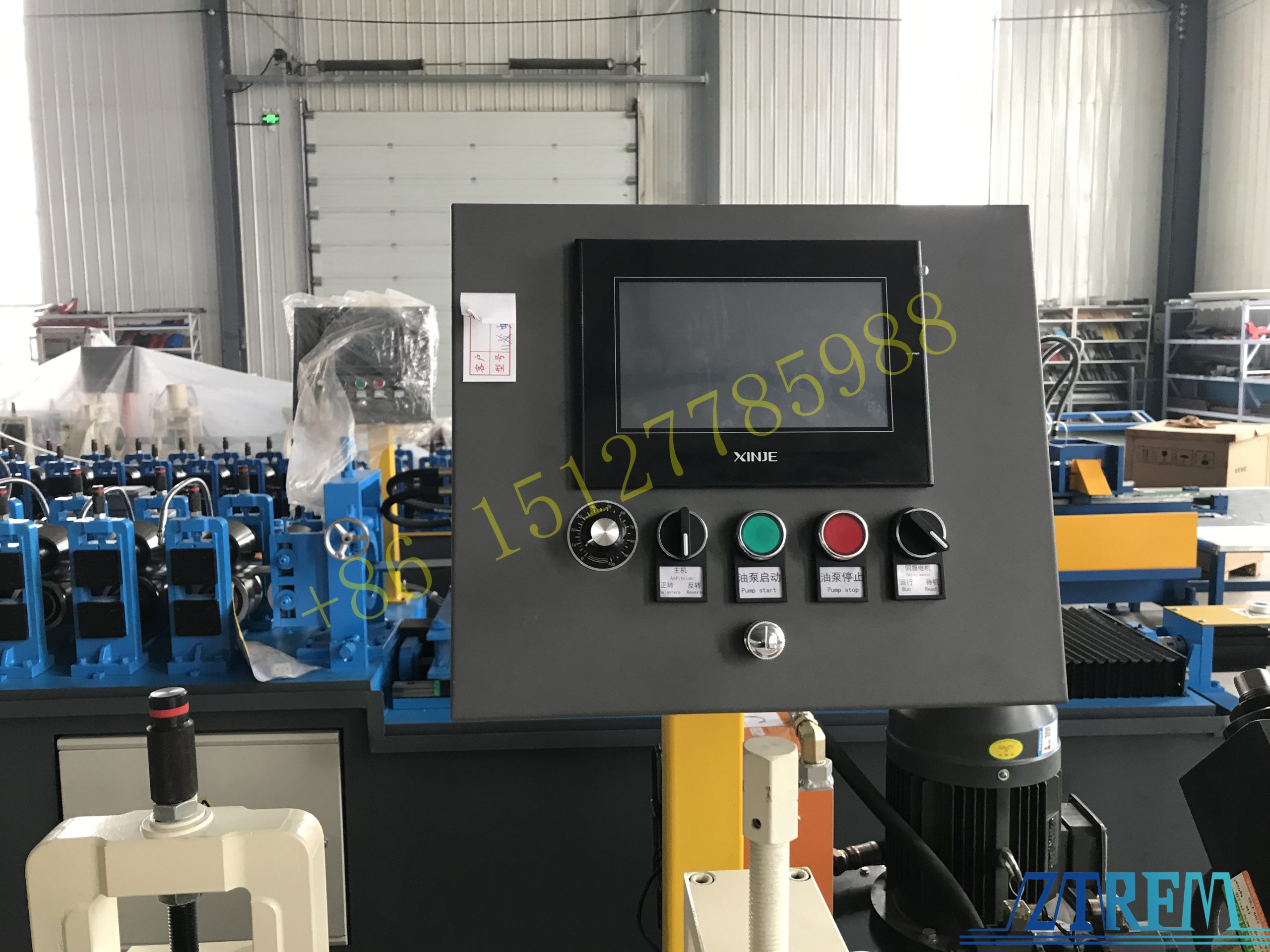

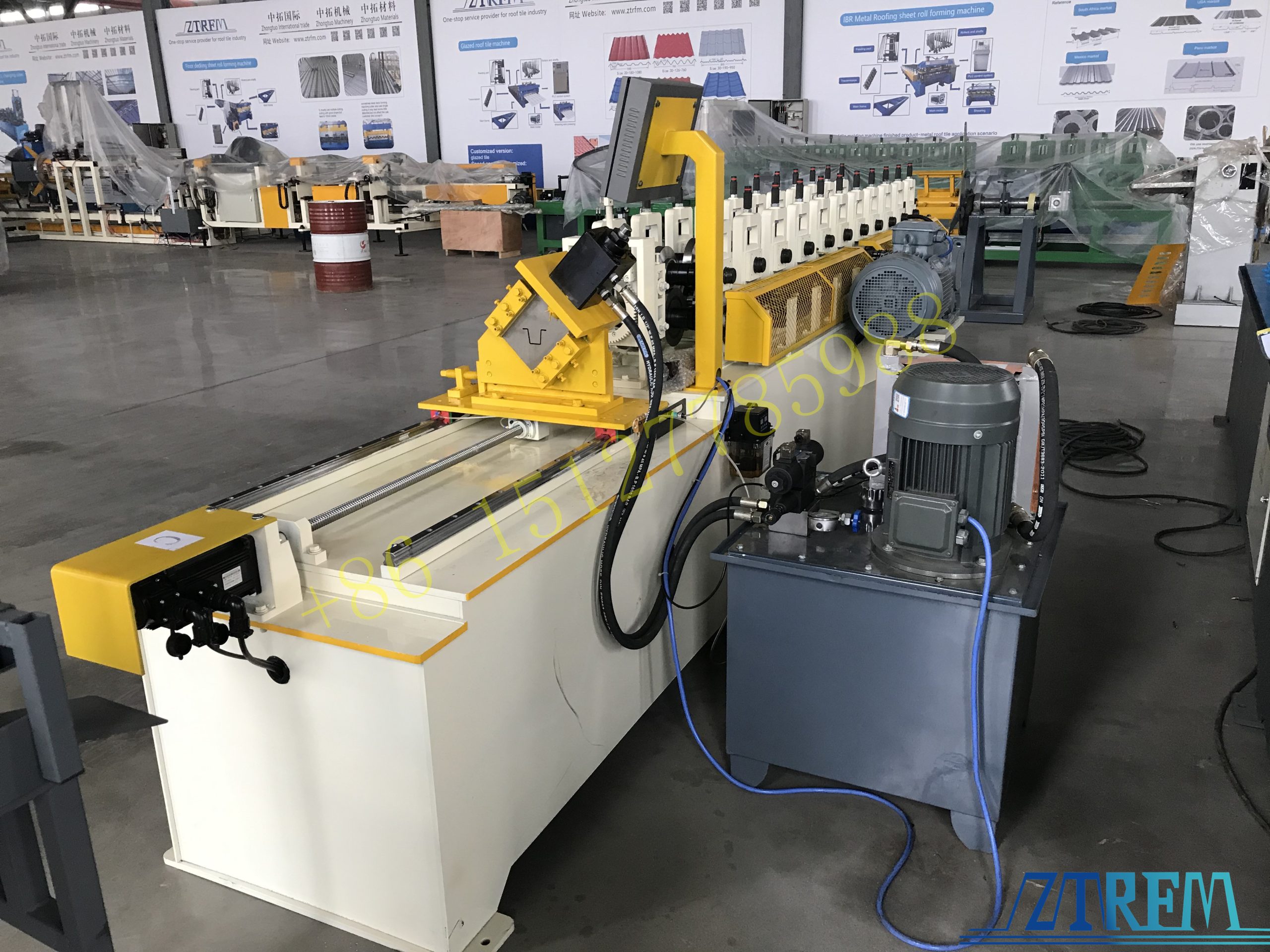

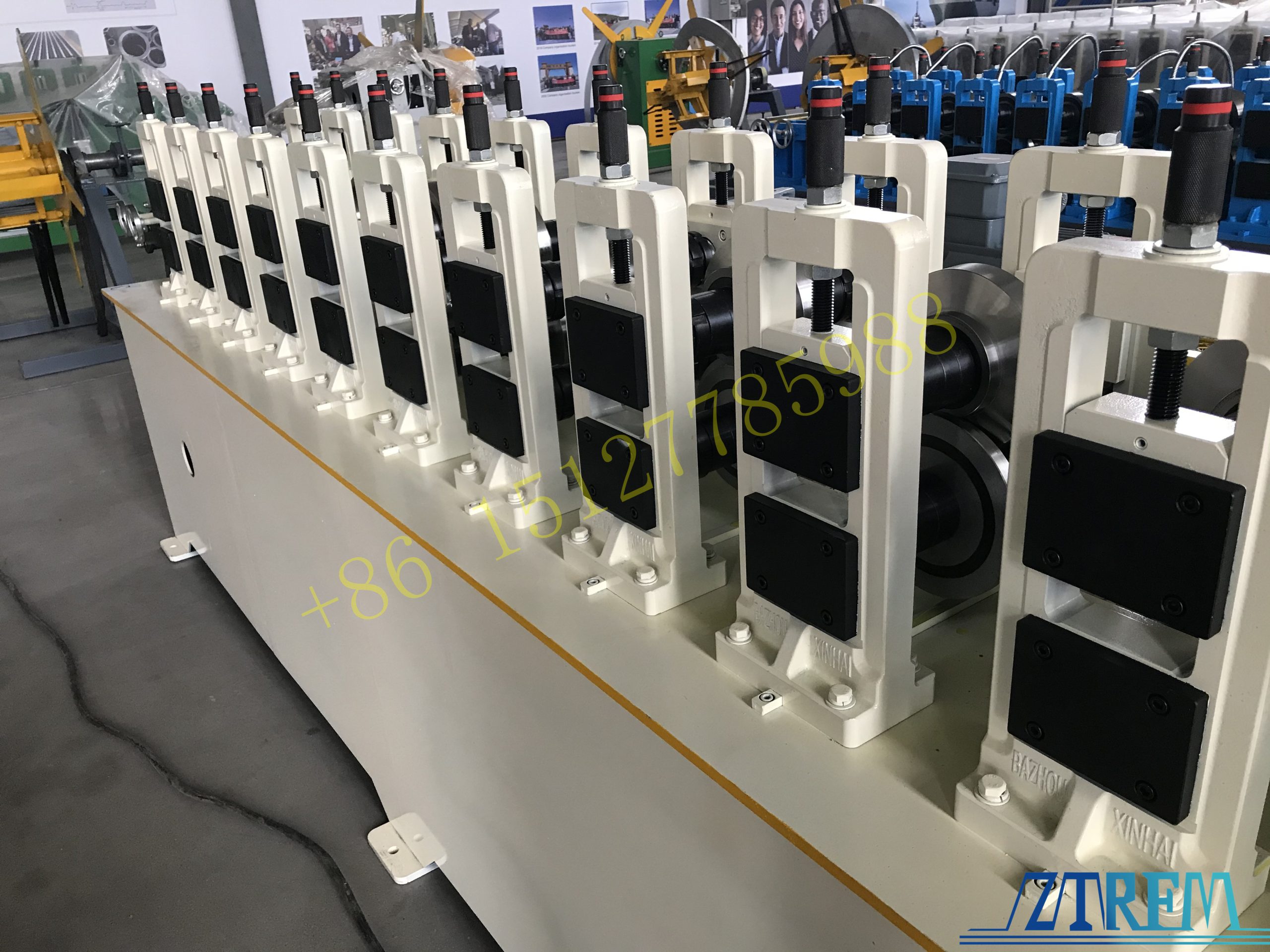

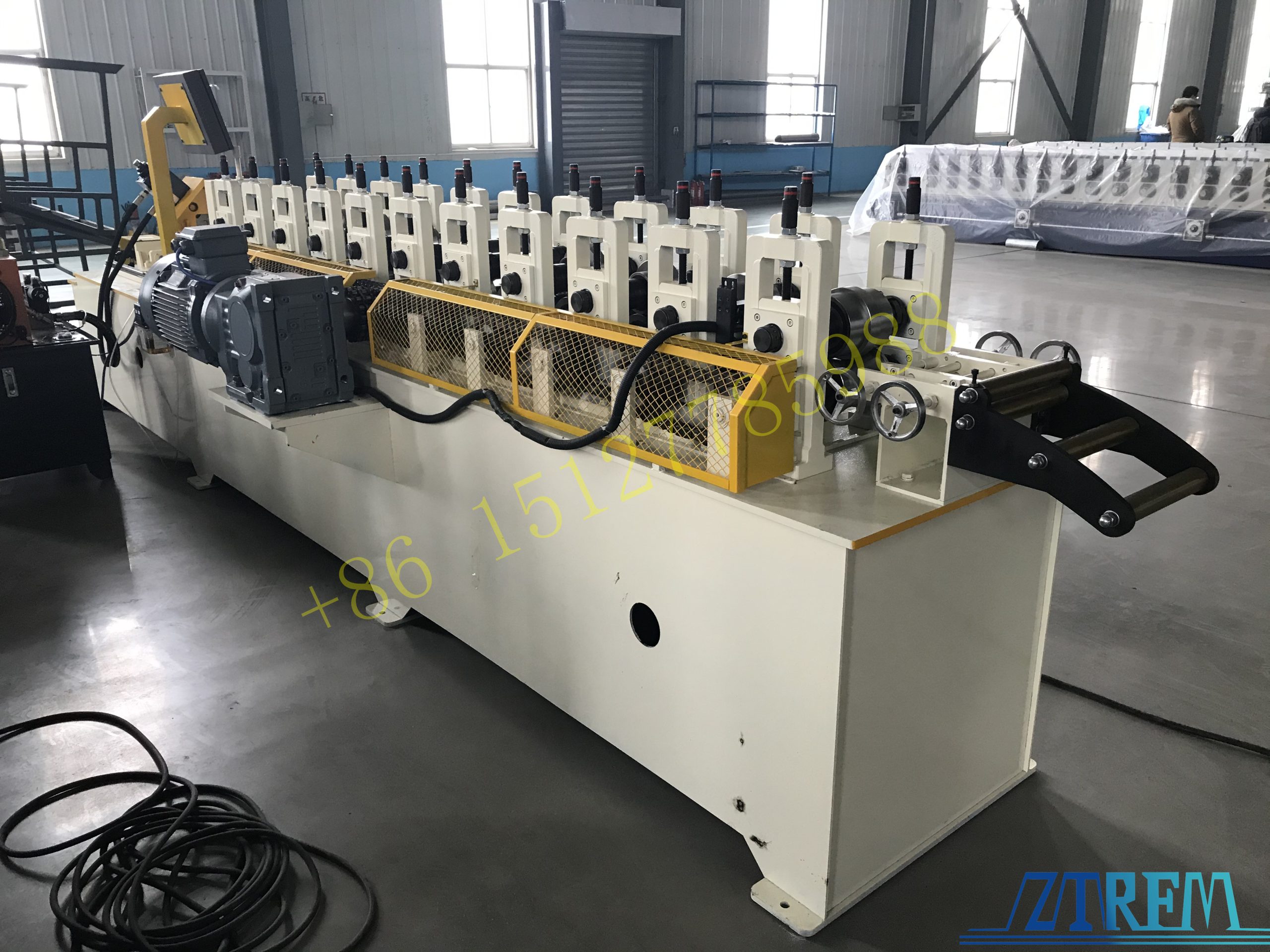

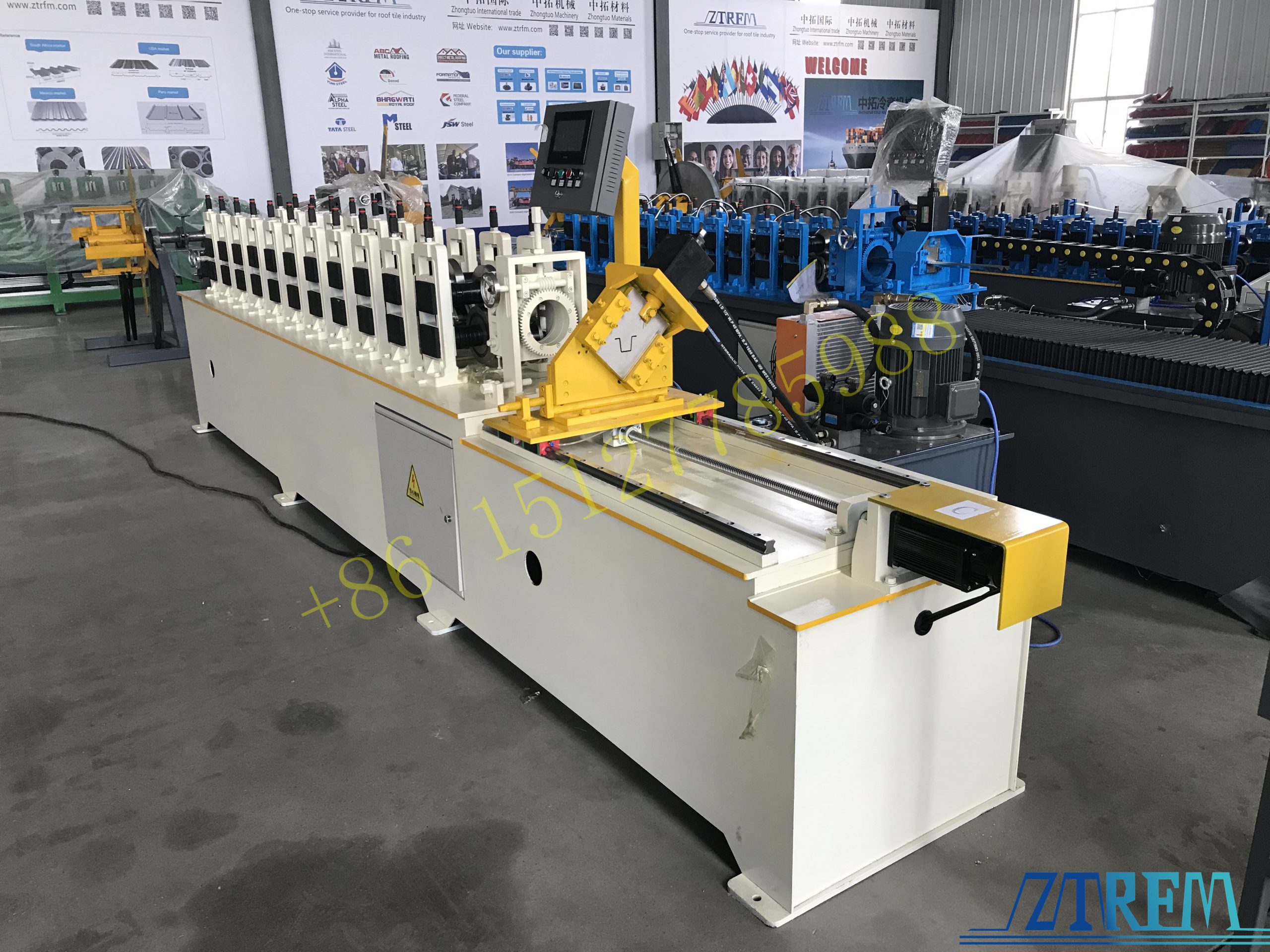

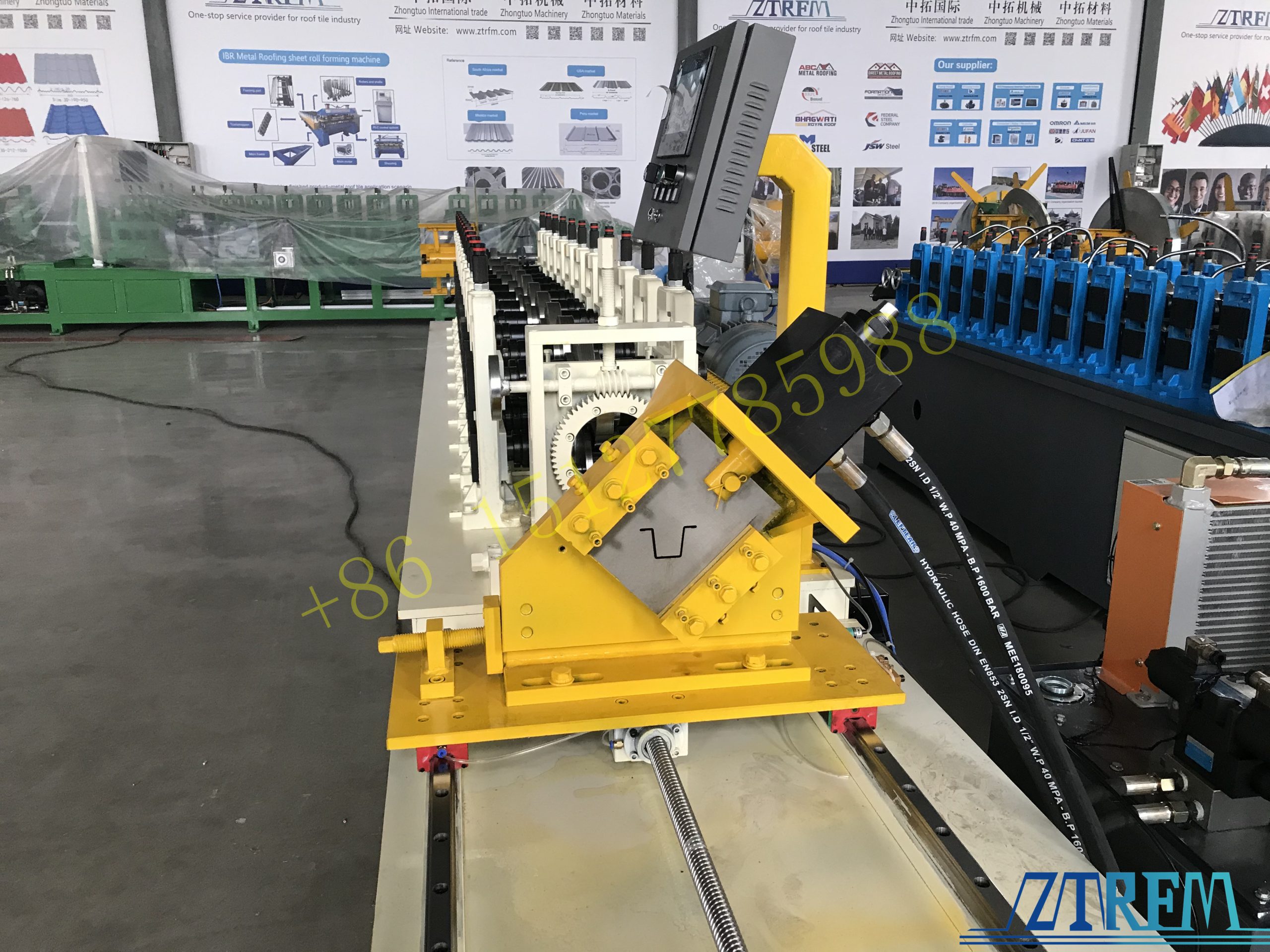

The pictures of the Furring channel machine:

























The components of the whole production line:

No. Name Quantity
1 Manual/hydraulic Decoiler 1 set
2 Main roll former 1 set
3 Control system 1 set
4 Hydraulic system 1 set
5 Product Run-out table 1 set



The Technical specifications of the whole production line:

Item Name Specifications
1 Raw material Galvanized steel
2 Raw material thickness 0.3-0.6mm
3 Decoiler Manual/Hydraulic decoiler
4 Roller station 12 station(according to profile drawing)
5 Roller material Cr12 steel with quenched treatment
6 Shaft diameter 50mm
7 Shaft material 45# steel with tempered
8 Transmission by chain
9 Motor power 5.5kw
10 Machine frame 350H steel welded
11 Cutting type Electric motor cutting
12 Hydraulic power 5.5kw
13 Cutting blade material Cr12 with quenched treatment
14 Cutting tolerance +/-1mm
15 Control system PLC
16 Brand PLC:Delta/Siemens/Mitsubishi

Touch screen:Delta/Siemens/Mitsubishi

Encoder:Omron



The working video of the furring channel roll forming machine:
