There are three types of shelf shelves: light shelves, medium shelves, and heavy shelves.
Light shelf column parameters: height 2m, 38*38 (mm), each layer bears weight: 100kg-150kg;
The column specification of the medium-sized laminate shelf is 80*40 (mm), and each layer can carry 200-250KG. Column height 2m;
3. Heavy-duty storage shelves: These shelves generally do not have standard specifications, and the column specifications are designed according to customer needs, but generally have the following conditions:
Our machine can produce different sizes and thickness for both light upright and heavy upright.
The composition and picture of the fnished shelf:
The profile drawings of the Upright:
The layout of the whole production line:
The main technical specifications:
1. Hydraulic decoiler: 5 tons capacity(support customization)

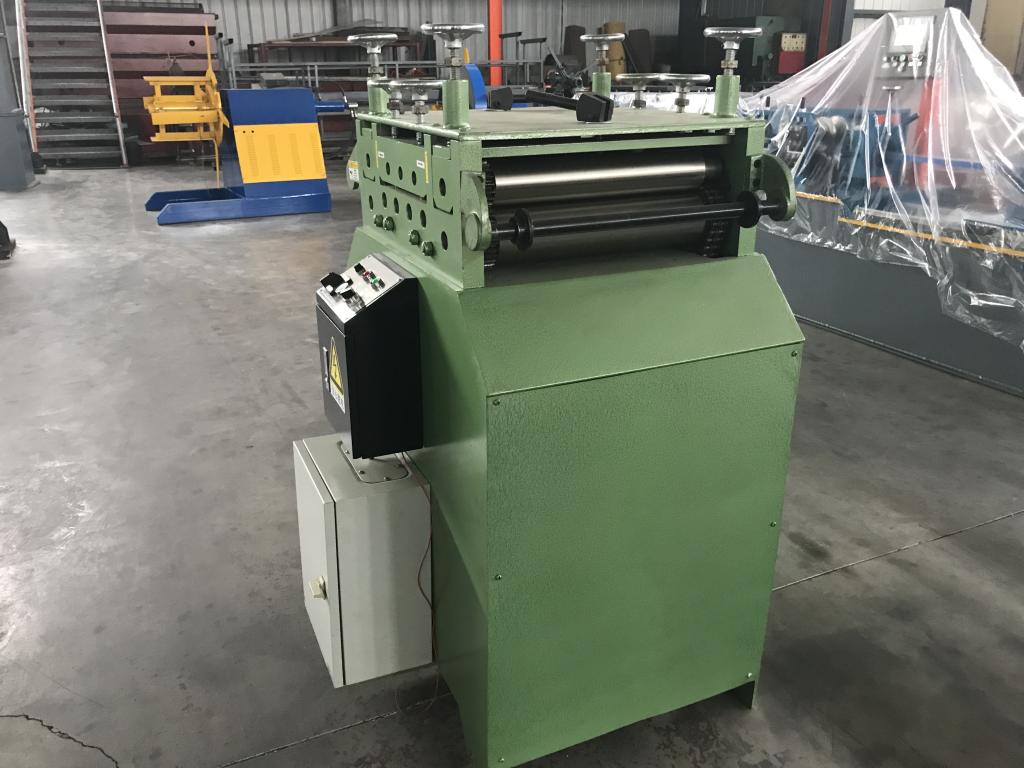

2.Leveler: 7 rollers,up 3 down 4

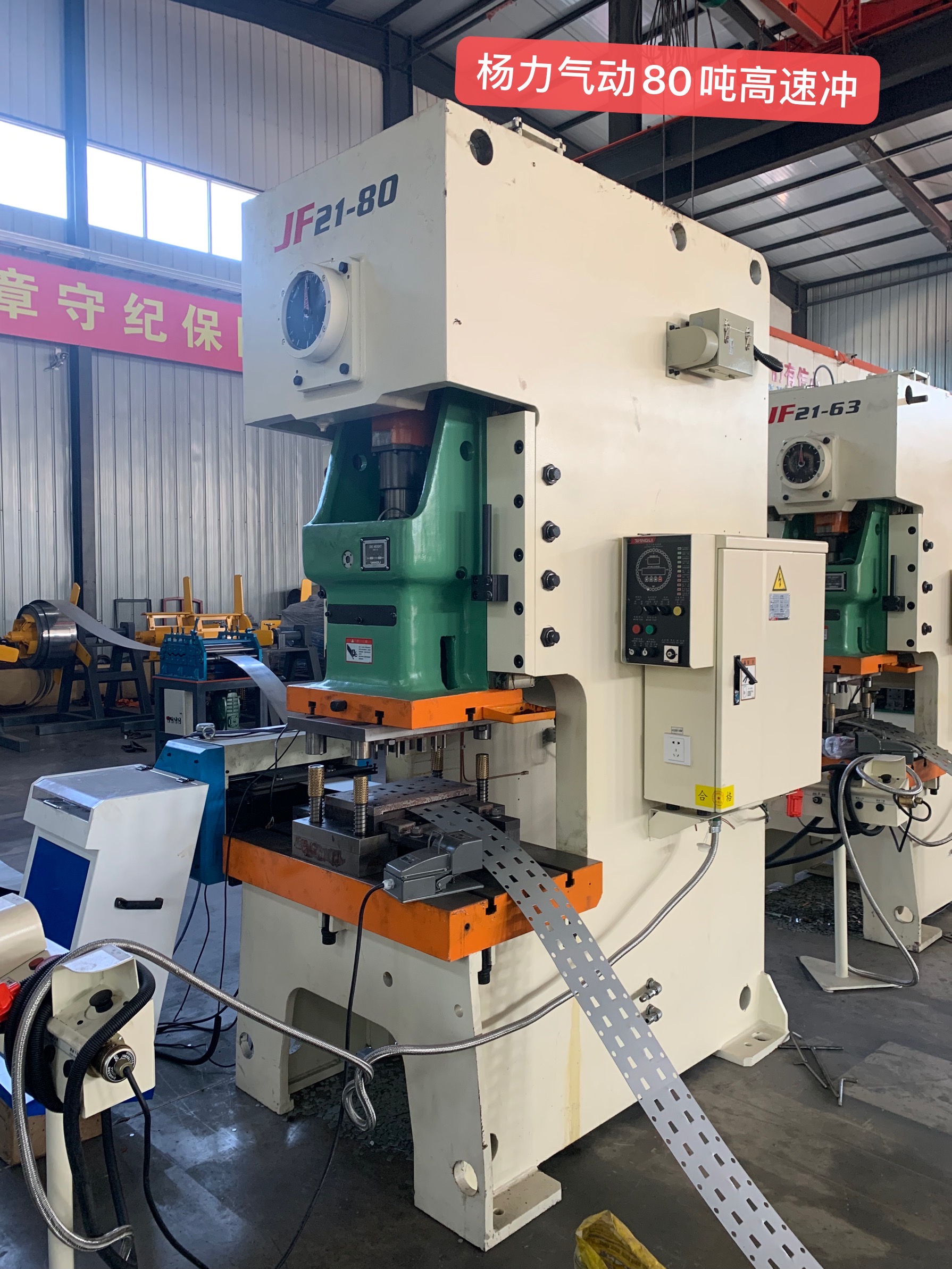

3.Punching machine:Yangli brand,pneumatic,80Tons,with servo feeder

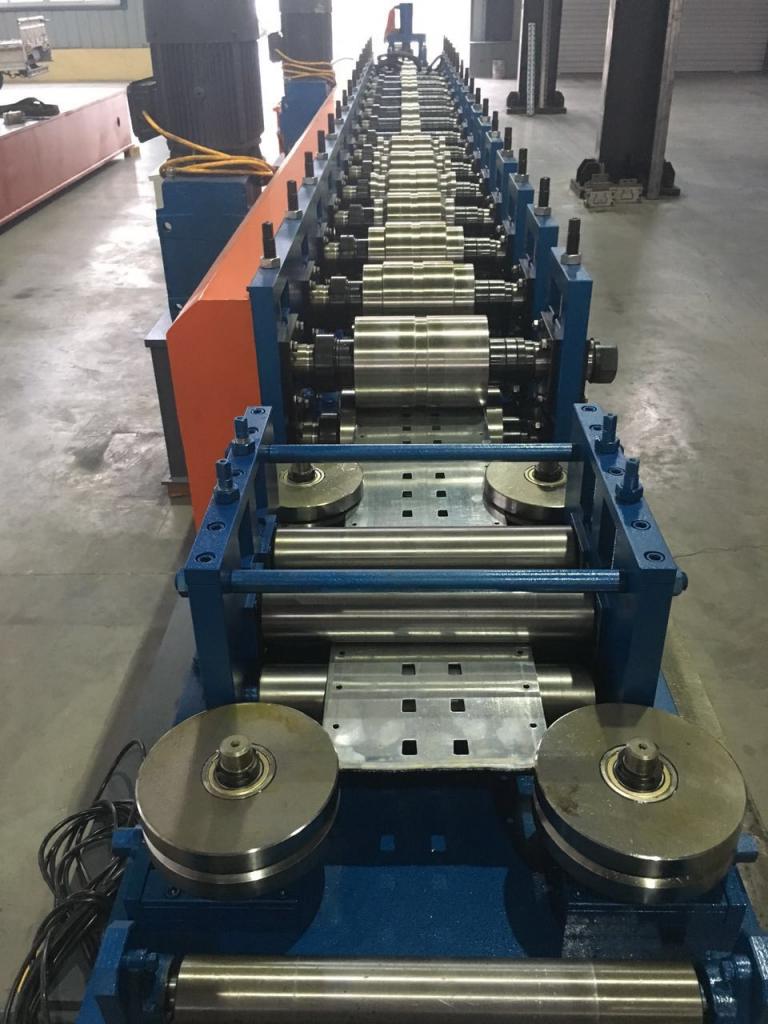

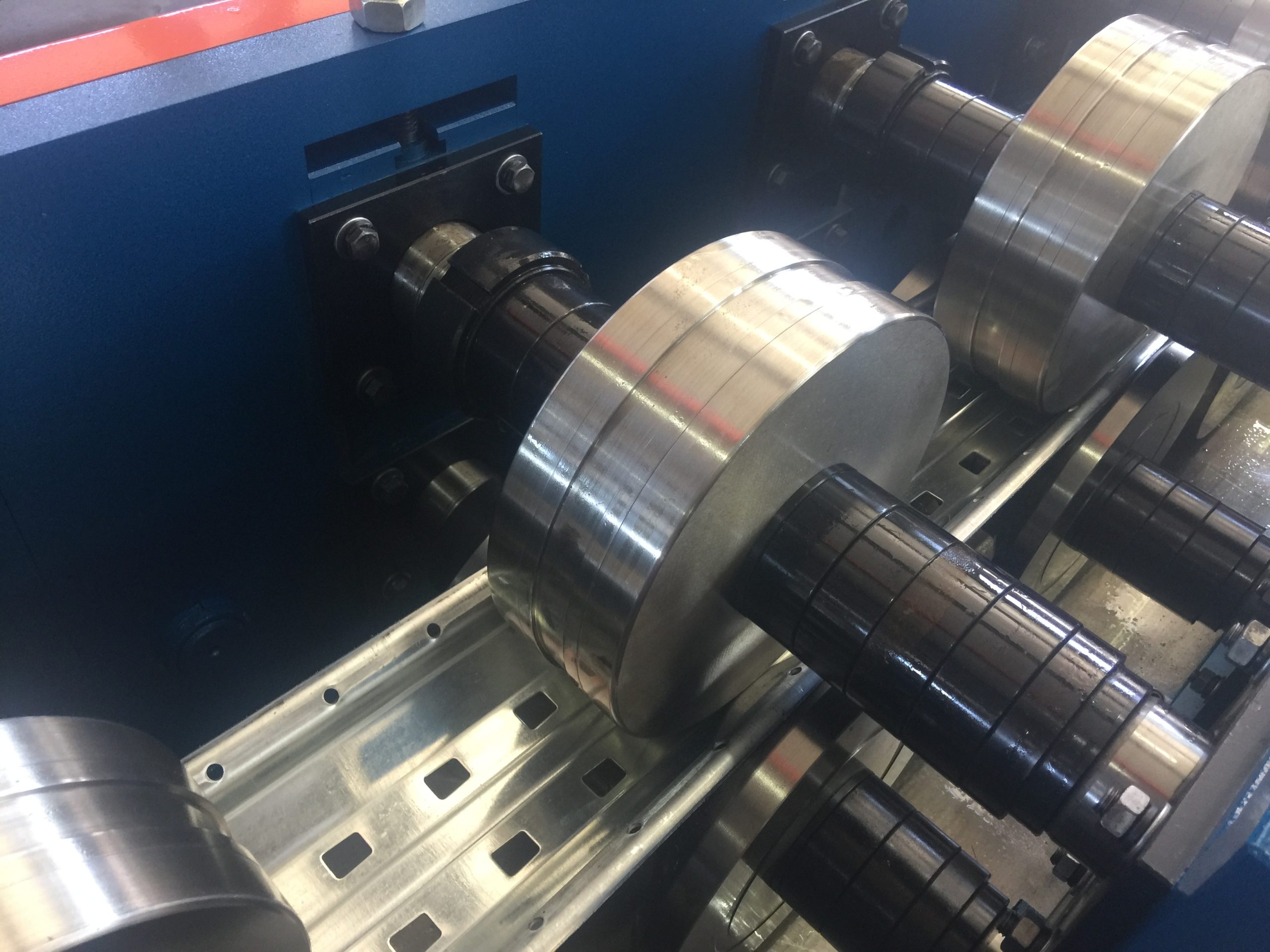

4. Roll forming machine:
- 16 roller stations
- Roller material:Cr12 with quenched treatment
- 70mm shaft diameter
- Shaft material:45# steel
- Main motor power:11kw*2 sets
- Transmission:By chain(Gear and gearbox for optional)
- Cutting system:Hydraulic cutting system,no waste material
- Hydraulic power:5.5kw
- Cutting length tolerance:+/-0.5mm
5.Run-out table:6 meters
6.Control system:PLC system,DELTA brand or Siemens brand
The finished product:
