Highway Guardrail Rolling Forming Machine

       Highway anti-collision guardrail is the main form of semi-rigid guardrail. It is a continuous structure with corrugated steel guardrail panels spliced with each other and supported by the main column. It uses the deformation of soil foundations, columns, and beams to absorb collision energy, and forces out-of-control vehicles to change directions and return to normal driving directions, to prevent vehicles from rushing out of the road, to protect vehicles and passengers, and reduce losses caused by accidents. The corrugated beam guardrail is both steel and flexible, has a strong ability to absorb collision energy, has a good line of sight guidance function, can be coordinated with the road line, and has a beautiful appearance. It can be used on small radius bends, and the damaged place is easy to replace. The combined wave beam guardrail can be used on the narrow central divider.

For the Highway guardrail is has three way and two waves, here are some drawing profiles for your reference:

Drawing profiles of guardrail
Drawing profiles of guardrail



Highway guardrail finished product pictures for your reference:

Guardrail
Guardrail



Highway guardrail rolling forming machine design we have the following options for your reference:

Option A Economic design using the middle plate frame and chain transmission
Option B Strong version using gearbox transmission and molding frame
Option C High speed using the flying tracking shearing design

Take the highest speed Highway guardrail rolling forming machine for example:

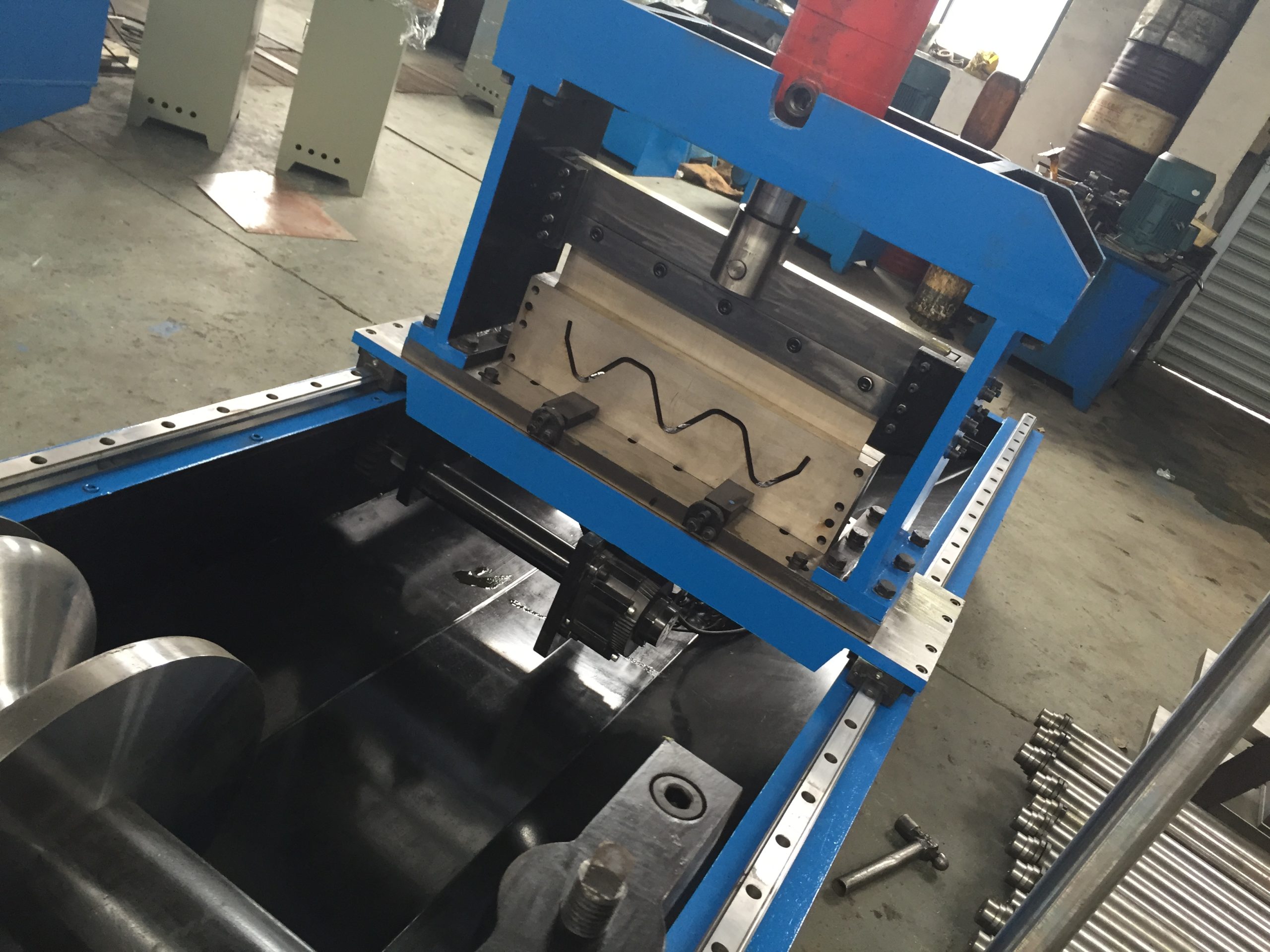

Highway guardrail rolling forming machine
Highway guardrail rolling forming machine



Machine working flow:

working flow of highway guardrail rolling forming machine
working flow of highway guardrail rolling forming machine



Highway guardrail rolling forming machine Parameters for your reference:

Roll forming system
Advantage To make sure high working efficiency and higher speed and accuracy.
Main size 18.5*1.2*1.5m
Weight 15 Ton
voltage customize
Roller fixed method memorial archway
Main frame 400#H  beams
driving mode case of differential
Roller material 45# steel after processing by straightening and quenching.
Roller diameter 100mm
Gear material GCR15, after quenching treatment, and the wheels of the gap after chrome
Bolt High strength testing
Roller station 16 stations
Motor power 30kw



roll forming system of Highway guardrail rolling forming machine
roll forming system of Highway guardrail rolling forming machine
