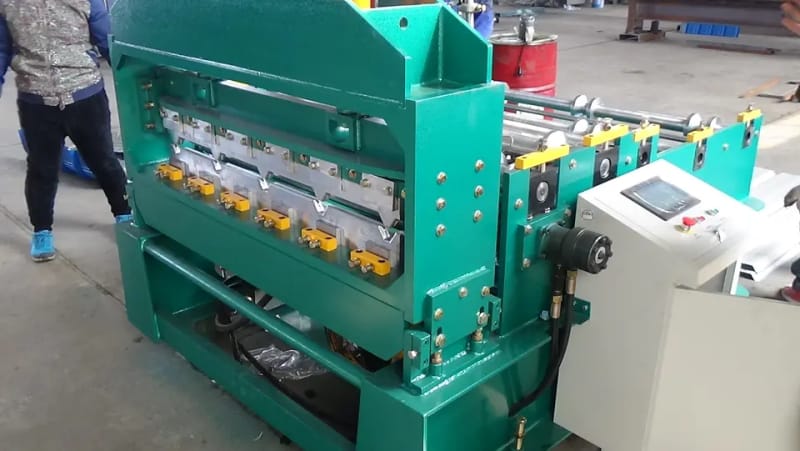

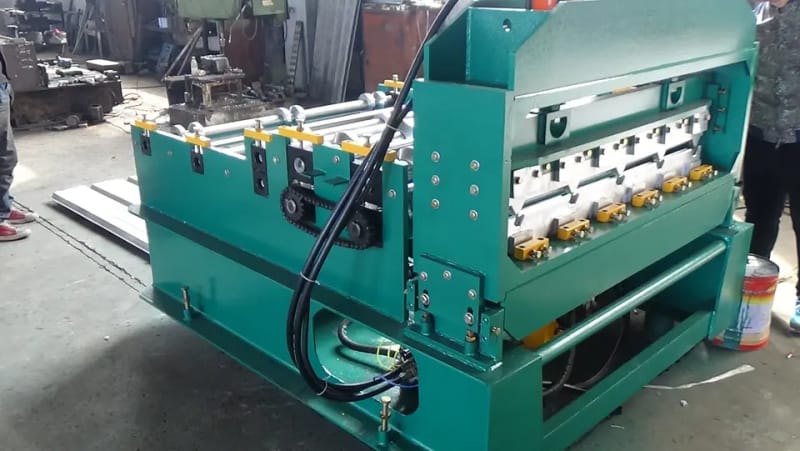

Hydraulic Metal Steel Bending Machine Roof Sheet Curving Machine

The Hydraulic Metal Steel Bending Machine is a fully automatic  machine for bending roof panels, which can meet the needs of bending and arching roof tiles. The hydraulic arching machine can control the angle and speed of bending by adjusting parameters.

The Features of The Machine:
» PLC system control the roof sheet curving degree and curving times.

» Hydraulic oil pump station have cooling system to ensure oil temperature not very high.

» The rollers use 45# steel chromed with quenched treatment, no easy broken.

The Picture of the Finished Product:

Main parameters of arch metal curve roofing forming machine
1. Dimension of line: Main machine:2300*1650*1600mm
2. Weight: About 1.5T
3. Feeding roller material: 45# high steel, chormed 0.05mm
4. Shafts: 70mm
5. Main motor power: 3kw
6. Voltage: 380V/3phase/50HZ(or as your requirement)
7. Crimping mould: Cr12 high steel,quenched
8. Productivity: 5-10m/min
9. Control system: Delta PLC box with inverter

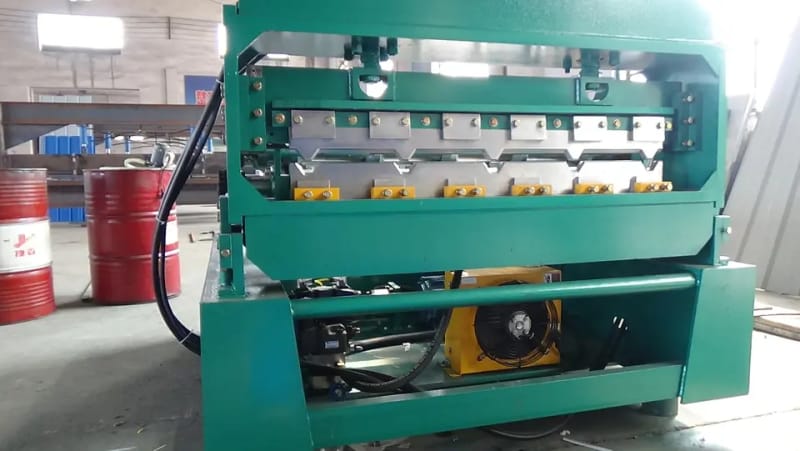

Press mould of arch metal curve roofing forming machine
This new model of arch metal curve roofing forming machine adopts advanced technology.
Compared with old machine, you can find in the following picture:
The fix type of blade is set against beam instead of set on the beam with screws.
Due to this new fix type, blade of arch metal curve roofing forming machine can prolong 3-5 years .
