Movable hydraulic decoiler automatic type 5 ton, 70 ton and 10 ton for matching with two more rolling forming machines.
Movable hydraulic decoiler automatic type 5 ton, 70 ton and 10 ton available

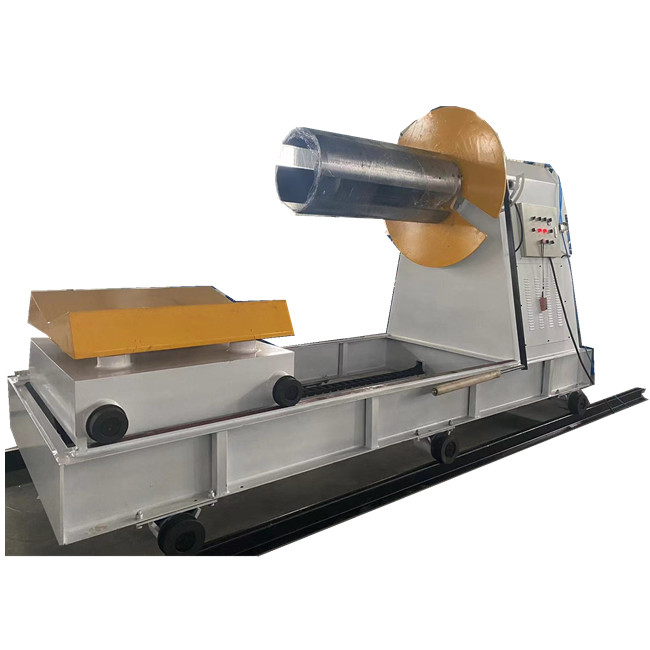

Movable hydraulic decoiler automatic type 5 ton, 7 Ton and 10 Ton for matching with two more rolling forming machines. The decoiler could move along the rail, the rail we can design according to your requirements like 7 meter long, 10 meters long or more longer. By this way, more machines of rolling forming can use the same decoiler. For one thing, you can save space and save the cost based on that those rolling forming machines can not work at the same time. Here is one picture for your reference:
Movable hydraulic decoiler automatic type 5 ton, 70 ton and 10 ton designed based on the following requirements:
Features of Movable hydraulic decoiler automatic type 5 ton, 70 ton and 10 ton available
- The whole frame and loading car are movable along the rail.
- The loading car is installed on the decoiler.
- The rail length is customized.
- The decoiler loading weight is adjustable like 5 ton, 7 ton or 10 ton.
- Design with the robe taking, by this way you can use it together with the crane loading easily.
6. Equipped with world famous brand “Schneider” electrical parts, more safety and reliable and the operation of the equipment is more safe, reliable and stable.
7. It can stop the rotate of coil immediately when required, avoid unnecessary coil output.Fast braking, more safer. The matching high-speed forming machine needs faster uncoiling speed, and the pneumatic brake can provide greater braking force. Customers need to be equipped with their own compressed air source.
8. Four arms expanding device with sliding block can provide more powerful force to fixing the coil, The synchronous action can avoid the deformation of the coil.The block installed on the the arms can suit the coils with bigger inner diameter.
9. Equip with high quality solenoid valve，it has the advantages of large flow, sufficient power and low failure rate. The oil tube is bundle arrangement with machine line, with pretty appearance and safer operation.
10. The machine we equip with the remotor, by it you can control the loading car move easily also.
