Stone-coated Metal Roof Tile Making Machine

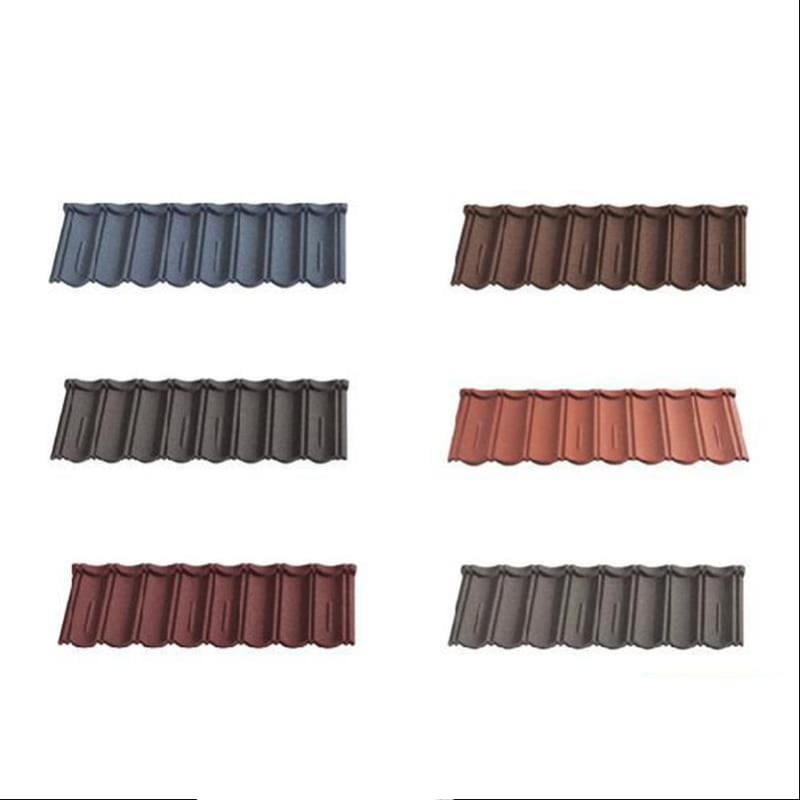

Stone-coated metal roof tile is produced by using high-tech. It uses the aluminum-zinc plated steel plate with excellent anti-corrosion performance as the substrate, water-based acrylate as the binder, sintered colored sand as the surface layer, and the weather-resistant acrylic resin It is a new high-grade roofing material with the outermost surface layer (equivalent to paint). Because of its beautiful appearance, light weight, durability and environmental protection, it has become the mainstream product of international roofing materials in recent years and is used in domestic high-end buildings. Here I will show you some popular types for your reference:
Coated metal roof tile is a modern environmentally friendly roofing material with the basic of 0.6mm Alzin coated steel.Covering color vermiculite surface which carried under the high temperature technology. It is high-performance, stable, energy-efficient and easy operation.
This stone-coated roof tile machine line is included below parts:
- stone coated line
- Plate slitting shearing machine
- flower shearing machine
- Hydraulic press machine
- roof tile mold
- bending machine
- Punch-200 T–450T

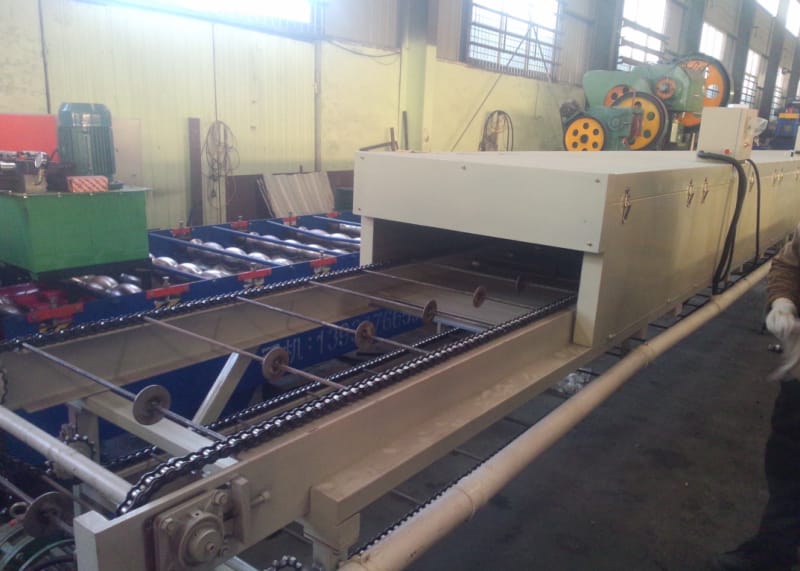

stone coated roof tile machine line Here I will list some important elements of Stone-coated metal roof tile making machine production line:
- Pressing machine . First we need to press the metal sheet to the tile shape. Different profiles, they need different pressing molds

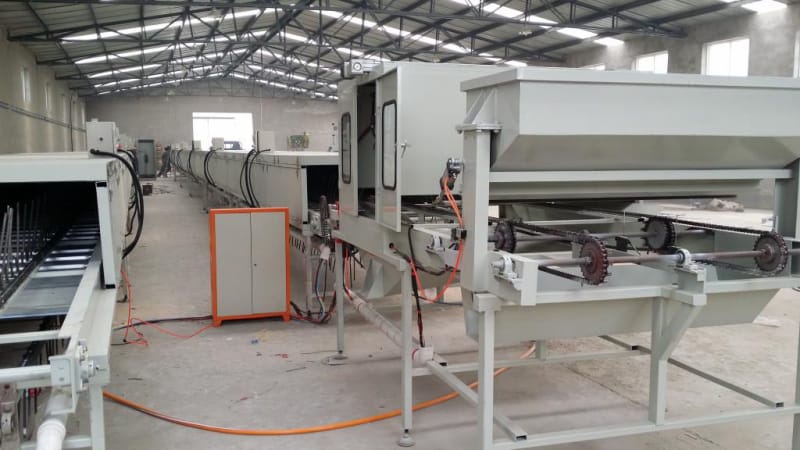

pressing machine of stone coated roof tile machine - Sand blasting and glue coated (the stone coated machine line)
NO. 1 Auto bottom glue spraying section Appearance size 4000*1000*2000mm Driving section 3KW Excitation motor or frequency speed regulation (AS per customers’ requirements ) Automatic pressure spray tank 1 set ; Capability: 200kg ; Range: 0.6~1Mpa Automatic glue machine motor Servo motor ; Power: 750w ; PLC Automatic spray gun 4 set (spare parts) Dust collecting fan 1 set ; Power: 200w Damp proof lamp 1 pc ; Power: 100w Conveying device Chain reciprocating Air compressor 1 set ; Power: 7.5kw Dust control of axial flow fan 1 set ; Power: 200w Agitator 1 set ; Power: 1.5kw NO. 2 Auto stone coated section Appearance size 3500*1000*1500mm Framework Steel welding Conveying device Chain reciprocating Automatic sand hopper 1 set ; Capability: 200kg Bucket lift 1 set Manual sandblast gun 4 sets NO. 3 The first time drying section Appearance size 25000*1000*1200mm Framework Steel welding Frame type thermal insulation wall 1.2mm cold steel with Rock wool Automatic temperature controller 4 sets ; Range: 0°~160° Infrared heating tube 30pcs ; Power: 30kw Conveying device Chain reciprocating Air cooling device 1 set ; Power: 200w
The first time drying section NO. 4 Auto face glue spraying section Appearance size 3000*1000*2000mm Framework Steel welding Damp proof lamp 1 pc ; Power:100w Automatic pressure spray tank 1 set ; Capability: 200kg ; Range: 0.6~1Mpa Conveying device Chain reciprocating Automatic spray gun 4 sets (spare parts) Manual patch glue gun 4 sets Dust control of axial flow fan 1 set ; Power: 200w Automatic glue machine motor Servo motor ; Power: 750w
The second time drying section NO. 5 The second time drying section Appearance size 30000*1000*1200mm Framework Steel welding Frame type thermal insulation wall 1.2mm cold steel with Rock wool Automatic temperature controller 4 sets ; Range: 0°~160° Infrared heating tube 30pcs ; Power: 30kw Conveying device Chain reciprocating Air cooling device 1 set ; Power: 200w
- Pressing machine . First we need to press the metal sheet to the tile shape. Different profiles, they need different pressing molds
