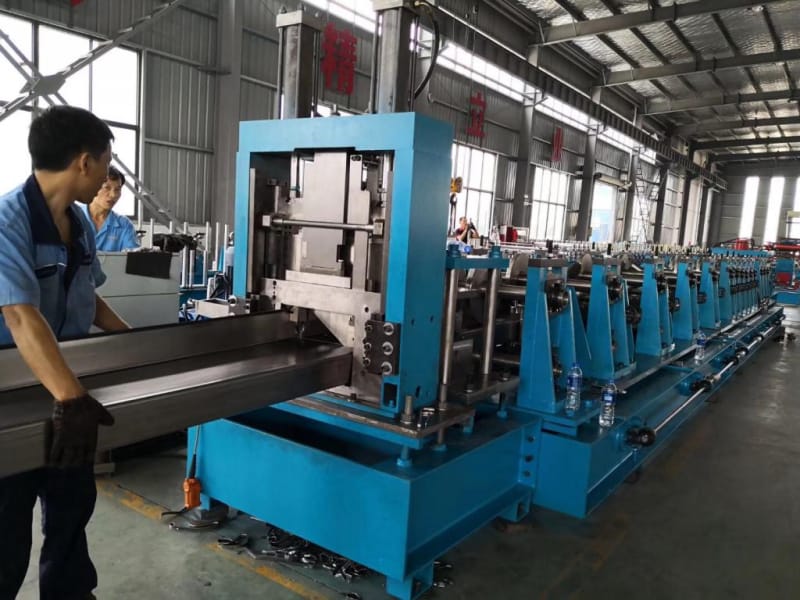

Z Purlin Roll Forming Machine
Z purlin roll forming machine is a single roll forming unit that can produce various specifications of Z-shaped purlin products by rolling. The machine adopts a fully automatic cutting device. Automatic cutting controlled by PLC. Ensure stability, precision and cutting speed. It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Profile drawing for reference:
Working flow as below:
The application of the finished product:
Some Parameters of the Machine:
ZTRFM Z purlin rolling forming machine | |
Formed Material | PPGI,GI,AI |
Thickness | 2.0-3.0mm |
Roller station | 12 rows(As your requirement) |
Diameter of shaft | 80mm solid shaft |
Material of rollers | Gcr 15 with quenched teeatment |
Machine body frame | Metal steel welded |

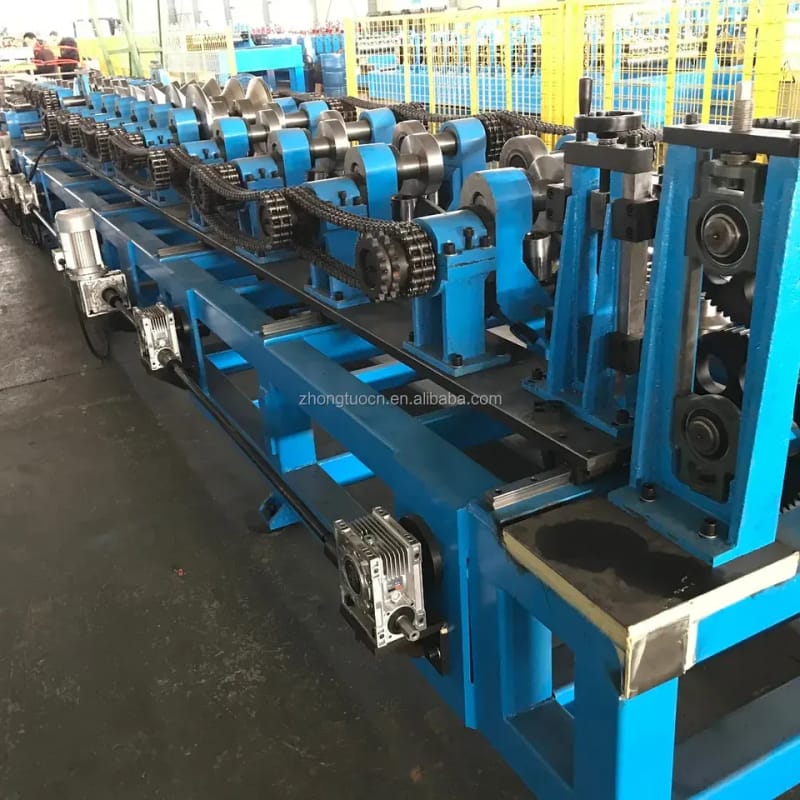

Drive | Chain transmission |
Cutter | cr12mov material, no scratches, no deformation |
Motor Power | 15KW |
Hydraulic system power | 5.5KW |
Voltage | 380V 50Hz 3Phase(As your requirement) |
Forming Speed | The speed is adjustable |
