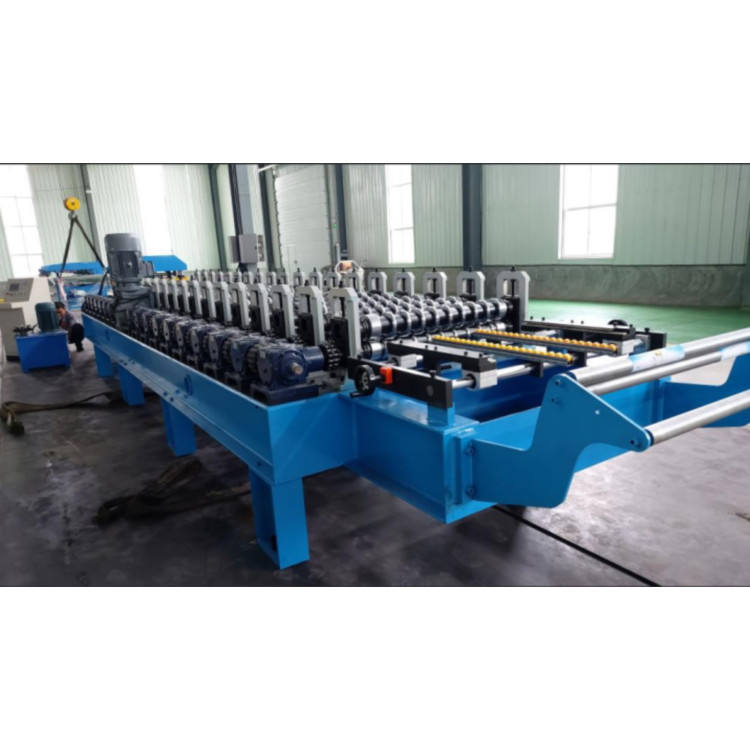

High Speed Metal Corrugated Roof Tile Making Machinery Roof Sheet Roll Forming Machine For American
Design Idea：
High speed:0-40m/min（speed customized 0-80m/min）
High speed:0-40m/min（speed customized 0-80m/min）
Special Design Cutting Device：Whole producing line just need one person for operation.
Stable Transmission: gearbox drive.
Profile drawing for reference:
this type corrugated roof sheet very hot sale in US.As we sold many machines to America,we have rich experience on it to confirm the finished product good and suit for market.
Processing Flow
Decoiler-feeding material-roll forming-cutting-receiving the product
High Speed Corrugated Roof Sheet Roll Forming Machine Hot Sale To America | |
Raw Material | PPGI,GI |
Material Thickness: 0.3-0.8 Mm | |
Machine Frame | 350# H Steel Frame Welded |
Machine Structure | Vertical Arch Frame Structure |
Material Of Rollers | 45# Steel,Chromed Treatment (Cr Thickness:0.05 Mm), Anti-Corrosion,Increase Hardness, Ensure The Precision And Good Abrasion Performance. |
Forming stations | 21 stations |
Diameter of shafts | Φ80mm |
Material of shafts | 45# Steel Tampering Treatment, Prevent Deformed And Improve The Hardness |
Forming speed | About 0-40m/min |
Voltage | 380v 50hz 3phase Or As Request |
Transmission | Gear Box Transmission(Bevel Gear Inside) |
Material Of Gear: 20 Crmnti | |
Material Of Gear Box: Iron Casting | |
The connection between gear boxes are chains | |
Gear box will connect with the rolling station one for one | |
Advantage: can improve the speed directly after cutting | |
Work power | 11 kw ( gear reducer and servo motor driving) |
Cutting blade material | Cr12Mov quenched treatment to improve hardness |
Cutting type | No stopping Hydraulic cutting |
Machine weight | about 15 Tons |
Machine dimension | about 10000*2000*1400 mm |
PRODUCT DISPLAY
 | Feeding device 1. Rubber rollers protect raw material surface 2. With handwheels easy adjust for feeding different thickness raw material. 3.the platform width is adjustable by hand wheel, have the bearing inside to protect the edge of the steel sheet. |

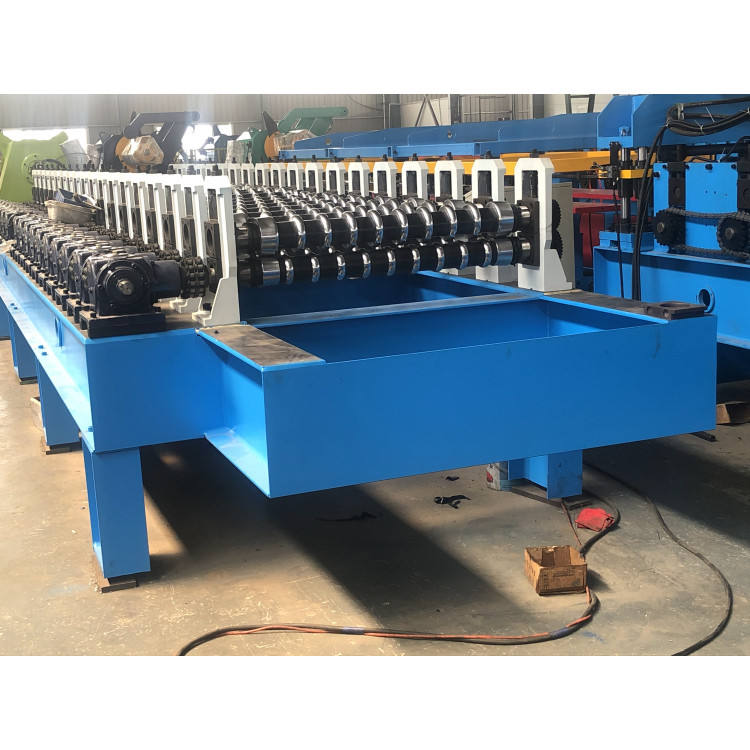

 | Roll Forming Device 1.45# Steel,Chromed Treatment (Cr Thickness:0.05 Mm), Anti-Corrosion,Increase Hardness, thick chromed good hardness for long service time. 2. Each roller has number and with keynotes, it can fix on the shaft stablely |
 | Transmission device Gearbox transmission,stable and no loose. |

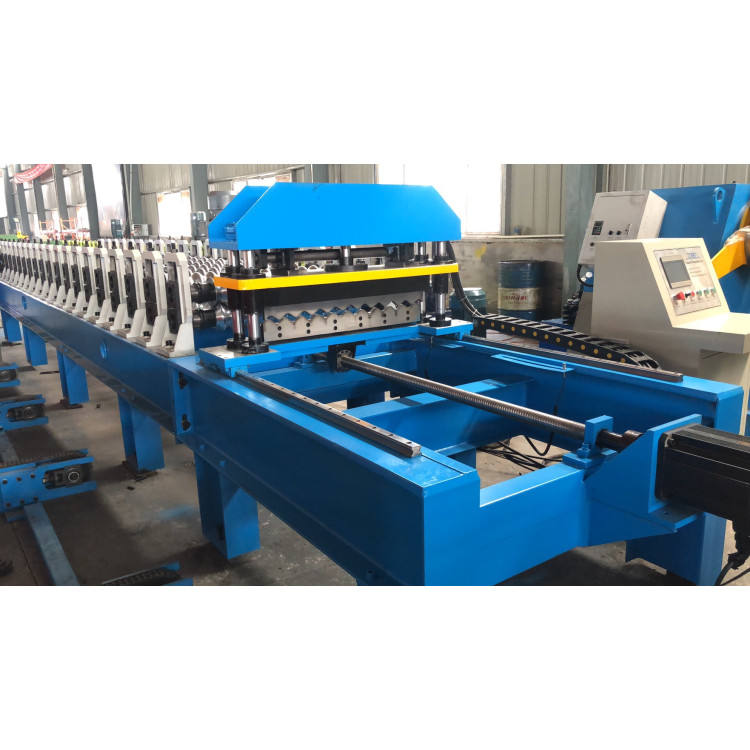

 | Hydraulic Cutting Device 1.Work type:hydraulic servo track cutting servo motor 5.5KW 2.Driving method:By pillar type Cylinder 3.Hydraulic motor power:4 kw 4.Cutter material ：GB-Cr12 with heat treatment 5.Cutting length tolerance ±10m/2mm |
 | PLC control system Brand PLC brand : Delta Inverter brand: Delta Low electric part: Schneider Encoder: Omron Function: 1.Adopted aviation plugs,easy installation. 2.Full automatic easy operation. 3.Operation language:English(provide customized) 4.National coinsurance,spar parts Brand Siemens and Schneider. |
 | Hydraulic station 7.5kw motor with cooling system for long time using. |
 | Automatic Stacker 3m Conveyor |
 | Automatic Stacker 6m Automatic Stacker |
