Self-lock standing seam profile Wall Cladding roll forming machine

brief introduction

The self lock profile is widely installed on residential and light commercial roofing projects with great success. this type of standing seam metal roofing look great and add much curb appeal to a building.

 photos of finished self lock profile

Application showing working flow

main parameter of this machine

Length of the main part:about 7200*1450*1500mm

Weight of main part:6-7T

Voltage:380V/50HZ 3Phase

Roller fixer:middle plate

Frame:350H steel

Drive mode:chain

Material of rollers:45#steel, surface hard chromium plating.

Material of shafts:45#steel

Diameter of shafts: φ 70mm

Number of rollers: 20 rollering stations

Main power:7.5kw

Material of mould:Cr12 quenched

Power supply:hydraulic power

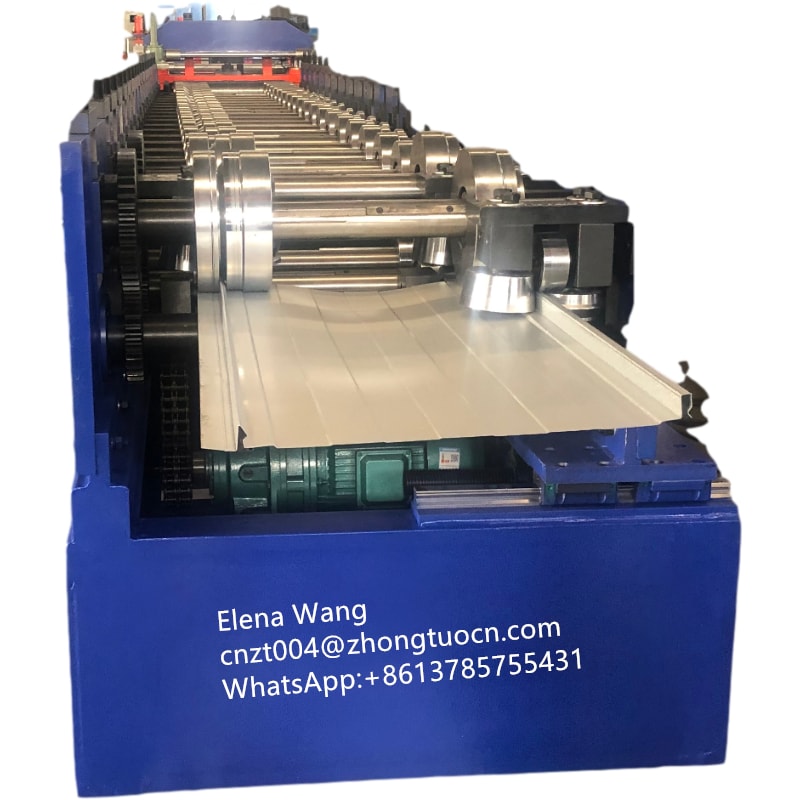

Machines showing
