ZTRFM Most Popular Metal Deck Roll Forming Machine Steel Structure Floor Deck Roll Forming Machine
Design Idea：
Logo press: add the logo press for customer, the logo will be pressed when the share part do the shearing job.
Good shearing: shearing system adopt double oil cylinder 7.5kw motor, more stable than single oil cylinder and can guarantee the cutter can cut 1.5mm thickness material easily.
Stable-transmission: 2 inches double chain with chain tensors.
Profile drawing for reference:
We made many floor decking machines for the North American countries, such as the America,
Canada, Mexico. Especially for the America, we already sent many floor decking machines to there, we have customer from New York,Florida, Texas, California as so on.

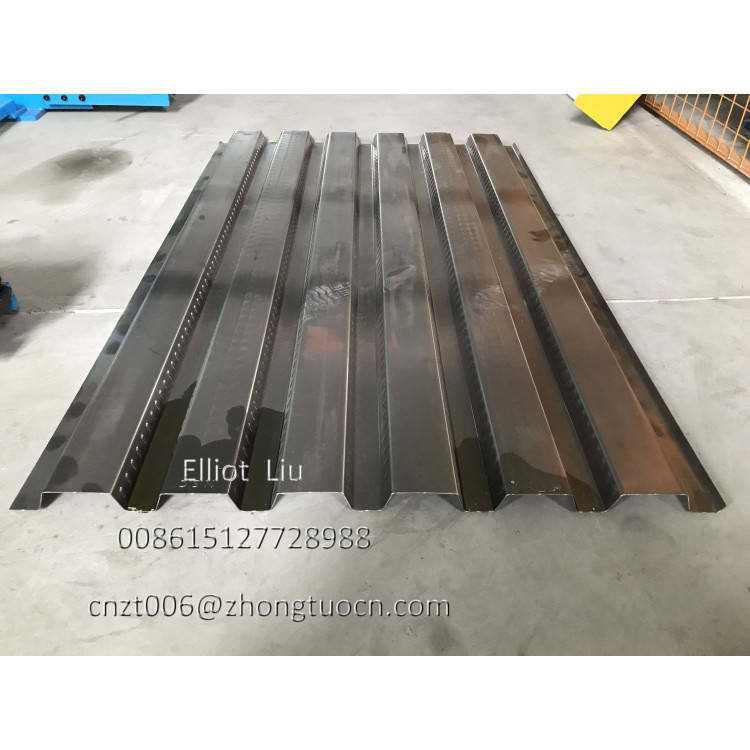

The floor decking machine America use are almost same and standard,1.5B type is one they normally used. and the material thickness they used are Gauges 16 18 20 22 as so on. Most of the metal floor decking panel are 36” effective width and 48” input material width.
Canada, Mexico. Especially for the America, we already sent many floor decking machines to there, we have customer from New York,Florida, Texas, California as so on.
The floor decking machine America use are almost same and standard,1.5B type is one they normally used. and the material thickness they used are Gauges 16 18 20 22 as so on. Most of the metal floor decking panel are 36” effective width and 48” input material width.
Processing Flow
Decoiler-feeding material-roll forming-cutting-receiving the product
1.5B metal roof deck floor decking panel machine for north america | |
Raw material | Galvanized coils yield strength till 550 Mpa |
Material thickness:16-22gauge( 0.8-1.5 mm) | |
Machine frame | 400 H beam steel welded |
Roller fixer | Middle plate (thickness 20mm) |
Material of rollers | Gcr15 quenching treat HRC58-60 |
Forming stations | 28 roller stations |
Diameter of shafts | φ 95 mm |
Material of shafts | 45# steel precision-machined |
Forming speed | 0-15 m per minute |
Voltage | 480 v 60 hz 3 phase or as request |
Transmission way | Gear and 2 inches double chain with chain tensors |
Drive motor | Power:18.5 kw x 2 sets installation: inside the machine |
Cutting blade material | Cr12Mov quenched treatment to improve hardness |
Cutting type | Hydraulic cutting |
Dimension of the machine | 15000 х 1850 х 1500 mm |
Weight | about 15.5 t |
PRODUCT DISPLAY
 | 12 tons hydraulic decoiler with loading car Loading capacity: 12t Max coil width: 1250mm Coil inner diameter: 480-610mm Hydraulic mandrel expansion Electric motor mandrel drive Hydraulic motor power: 5.5kw Drive motor power: 7.5kw |
 | Feeding device 1. Rubber rollers protect raw material surface 2. With handwheels easy adjust for feeding different thickness raw material. 3.The feeding part is mold iron frame ,and there is a handle can adjust feeding width |

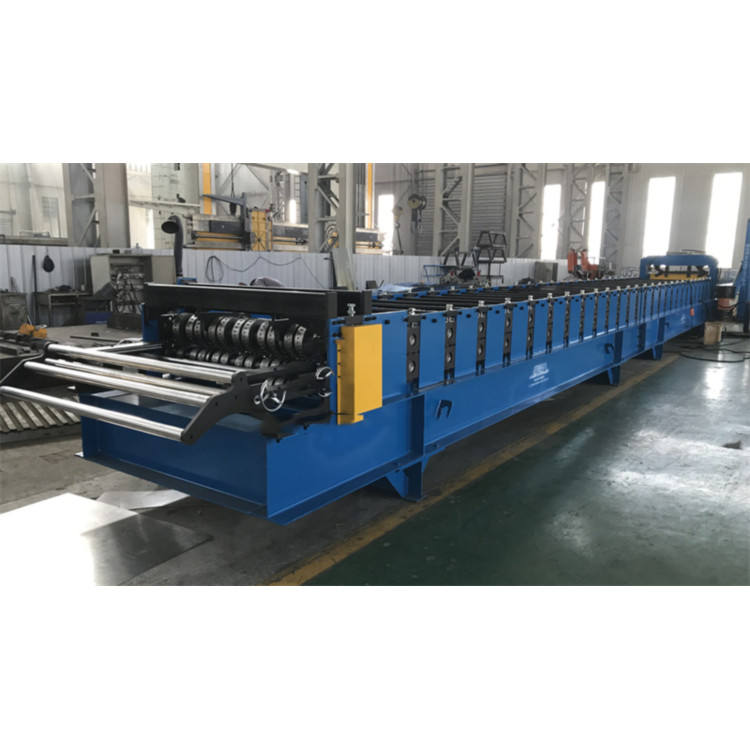

 | Roll forming device 1.rollers Gcr15 quenching treat HRC58-60 good hardness for long service time. 2.Each roller has number and with keynotes, it can fix on the shaft stablely |
 | Transmission device 1.Gear and 2 inches double chain drive,strong and stable. 2.chain tensors design- can guarantee the chain is not loose after long time use |
 | Hydraulic cutting device 1.Adopt double oil cylinder more stable than single oil cylinder 2.Logo press device added |
 | PLC control system Brand PLC brand : Delta Inverter brand: Delta Low electric part: Schneider Encoder: Omron Function: 1.Adopted aviation plugs,easy installation. 2.Full automatic easy operation. 3.Operation language:English(provide customized) 4.National coinsurance,spar parts Brand Siemens and Schneider. |
 | Hydraulic station 7.5kw motor with cooling system for long time using. |
 | Spar parts Our machine warranty time 2 years and the below spare parts are with the machine send to you free of charge |
