Small Portable Linear Roll Forming Machine For
Wall Panel Or Roofing Sheet
The ZT-Prollformer series is a fully mobile pan former ideal for both the workshop and for on-site operation.All functions and adjustments are positioned to one side of the machine. It is easy to transport, light weight with two castors mounted on frame.This saves on freight costs, shortages and the need for difficult leak prone panel end laps.
The guillotine-shear cuts panels without distortion and burr-free. equipped with 4 crane lifting eyes.
Working Flow:
For this portable machine, you can either use it as the production line or use separately. When working as the production line, the working speed can reach 15 to 25 meter per minute. If you use it as the production line, ZT machinery can supply the hydraulic decoiler and receiving table.
How To Installation :
When Do The Locking Of Such Metal Roofing Sheets, You Need Such Tools:

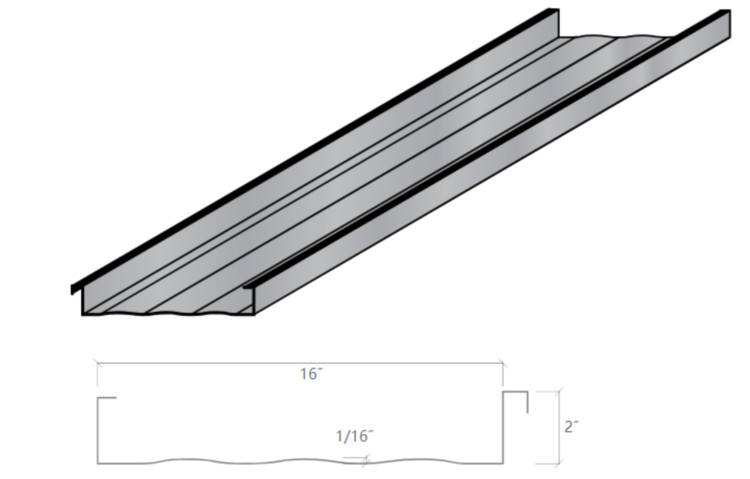

Manual and small portable linear roll forming machine could be used to make roofing panel within width 300 to 1250mm. But this is manual version, so it is easy to put any project on site, you can make any width you need easy. Meanwhile it is portable conveniently. Some drawing profile for your reference:
Linear Roll Forming Machine Parameters For Your Reference | |
Material width | 180mm a 1250 mm |
Material thickness | 0.5 – 0.7mm |
Drawing profile height | 25mm |
Working speed | 7 meter per minute |
Power | 0.55 kw |
Voltage | V 380 |
Machine size | 1700x940x820mm |
Machine weight | 250kg |
Machine Pictures For Your Reference:
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Advantage Of Small Portable Linear Roll Forming Machine For Wall Panel Or Roofing Sheet
1.Quick infinitely variable width of the work piece width in the range 320-700 mm. By rotating the handle with two screw pairs synchronously moving carriages moving the profiling rollers. 2.suitable for use both in the workshop and on site; 3.manufactures roofing panel-painting line and trapezoidal shape, as well as a one-way seam; 4.high quality of products through the use of an optimized design; 5.the use of complex composite rollers completely eliminates damage to the polymer coating of metal; 6.One-year warranty and unlimited service support the whole life.
This Machine Also Could Be Used To Produce Other Profiles
Like The Following Drawing Profile:
